All-in-One Machine QR Code Access Control
IM.CR05EU

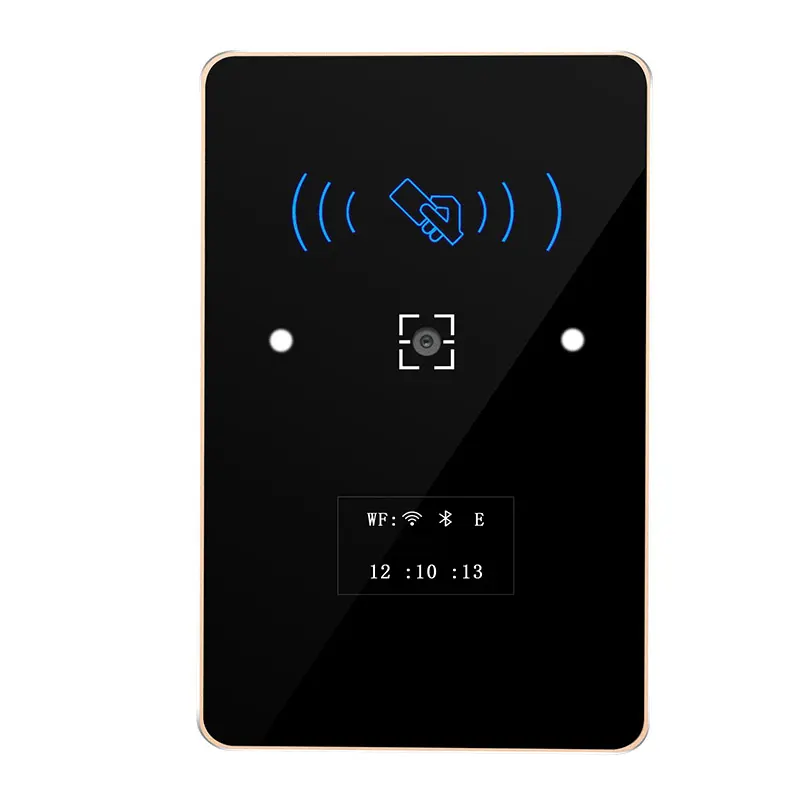

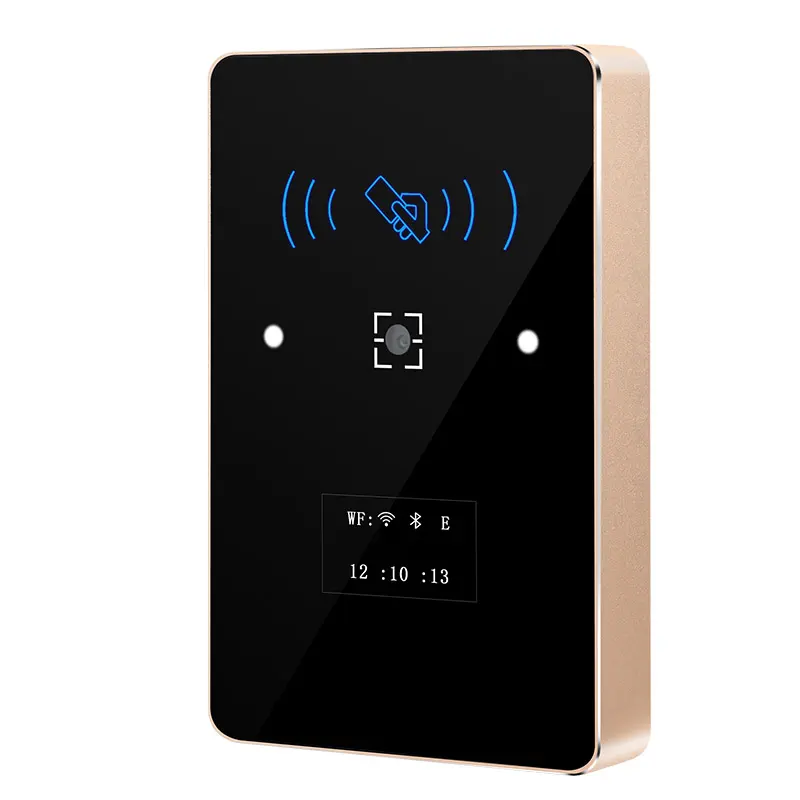

The IM.CR05EU QR Code Access Control Integrated Machine is a new-generation full-screen access control integrated device independently developed by our company. Boasting a fashionable and elegant appearance design, it adopts an aluminum alloy shell that features explosion-proof and anti-tamper properties, with a waterproof rating reaching IPX7, ensuring stable operation in various harsh environments.
-
Ethernet Interface: 2.0 angled plug-in wiring terminal
-
Recognition Speed: ≤200ms
-
Storage Capacity: 40,000 (20,000 QR codes/20,000 cards); 60,000
-
External Dimensions: 108.8×69×15 mm
-
Display Screen: OLED 0.96-inch display screen
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
The IM.CR05EU QR Code Access Control Integrated Machine is a next-generation all-in-one authentication device designed for modern access control systems requiring fast, contactless, and compact solutions. Developed in-house with advanced engineering and user-friendly features, this unit is ideal for applications in office buildings, smart communities, parking facilities, residential areas, and industrial zones.
Its compact form factor (108.8×69×15 mm) and sleek full-screen OLED display give it a clean, modern appearance suitable for wall mounting or embedded installation. The aluminum alloy shell enhances durability with explosion-proof and anti-tamper characteristics, while its IPX7 waterproof rating ensures stable outdoor and indoor performance—even in rain, humidity, or dusty environments.
With a recognition speed of ≤200ms, users experience quick response times when scanning QR codes or cards. The device supports dual storage capacity, handling up to 20,000 QR codes and 20,000 IC cards simultaneously, with an expandable capacity of up to 60,000 entries. This makes it ideal for high-frequency access scenarios with a large number of authorized users.
The 0.96-inch OLED display provides real-time feedback, including user prompts, scan results, and operational status, enhancing user interaction and reducing entry errors. The screen remains visible under low-light conditions and is energy efficient.
Advantages
- Compact and full-screen design for minimal installation footprint
- ≤200ms fast QR code or card recognition ensures efficient throughput
- Stores up to 40,000 records by default, expandable to 60,000
- Dual authentication support: QR code and IC card
- IPX7 waterproof rating for stable operation in rain or outdoor use
- Explosion-proof and tamper-resistant aluminum alloy housing
- OLED 0.96” display screen provides real-time access status
- Secure and fast communication via 2.0 Ethernet angled plug-in terminal
- Suitable for integration with gate systems, doors, elevators, and more
With its blend of rugged construction, compact design, and high-speed performance, the IM.CR05EU QR Code Access Control Machine offers a reliable solution for enterprises seeking secure, scalable, and user-friendly access control infrastructure.
- Product Details
- Specifications
- Installation and Use
- Adaptability
- FAQ
Product Details
Functional Features
- ≤200ms ultra-fast QR code or card recognition
- Dual-authentication support: IC card + dynamic QR code
- Stores up to 60,000 user credentials (QR codes + cards)
- High-brightness OLED screen offers real-time display and feedback
- IPX7 waterproof protection for stable performance in harsh conditions
- Aluminum alloy housing provides strength, durability, and tamper resistance
- Compact and lightweight for easy installation in tight spaces
- Compatible with various access control, elevator, and gate systems
Specifications
Core Technical Specifications
| Parameter | Specification |
| Model | IM.CR05EU |
| Recognition Speed | ≤200 ms |
| Storage Capacity | 40,000 (20,000 QR codes + 20,000 IC cards); up to 60,000 |
| Display Screen | 0.96-inch OLED |
| Shell Material | Aluminum alloy, explosion-proof and anti-tamper |
| Waterproof Rating | IPX7 |
| External Dimensions | 108.8 × 69 × 15 mm |
| Communication | 2.0 angled plug-in Ethernet terminal |
| Supported Methods | QR code and IC card |
| Installation Method | Wall-mounted / Embedded |
| Operating Voltage | DC 12V |
| Use Environment | Indoor / Semi-outdoor (covered) |
Installation and Use
Installation and Use
Before installation, confirm the mounting surface is clean, flat, and located near the access point (gate, door, or elevator panel). Use the included mounting template to mark screw and cable positions.
-

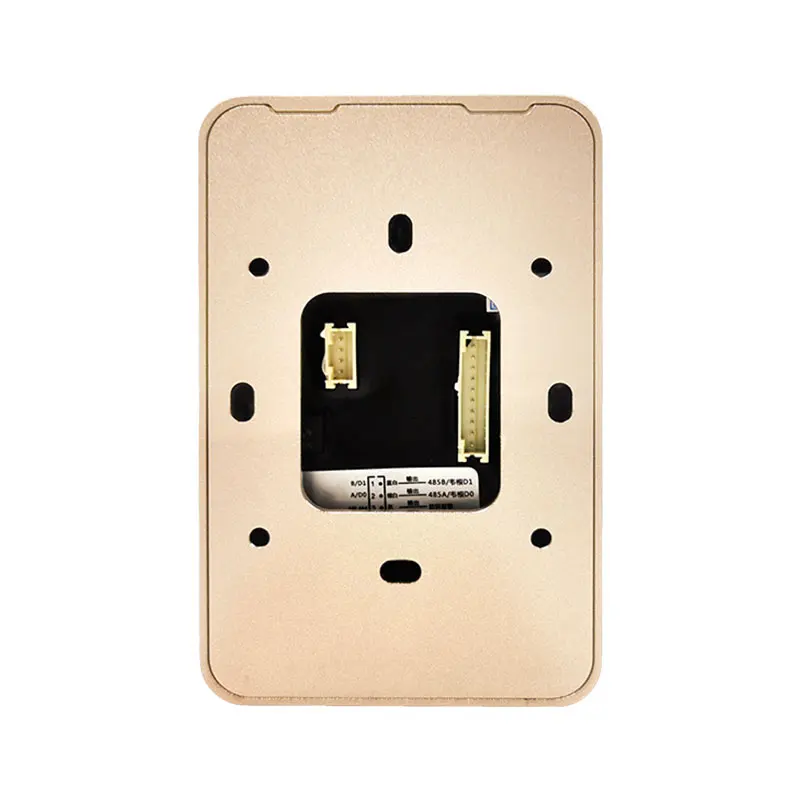

Wiring: Route the power and Ethernet cables through the designated hole. Connect the device using the 2.0 angled plug-in terminal.
-
Mounting: Secure the device using expansion screws or screws suitable for the wall type (metal, concrete, drywall).
-
Power On: Once powered (DC 12V), the OLED screen will light up and display boot status.
-
Configuration: Use the built-in interface or linked controller platform to add authorized QR codes, IC cards, and adjust network settings.
-
Usage: Present the authorized QR code or card near the scanner. If verified, the screen will confirm access, and a signal will be sent to the connected access terminal (door lock, gate, elevator).
Routine maintenance includes checking screen visibility, cleaning the surface gently with a dry cloth, and confirming communication stability.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification: CE, FCC, ISO
FAQ
FAQ
1. Can the device store both QR codes and IC cards at the same time?
Yes. It supports dual storage: 20,000 QR codes + 20,000 IC cards, expandable to 60,000 entries.
2. Is it suitable for outdoor use?
The device is IPX7 waterproof, making it ideal for semi-outdoor or sheltered installations.
3. How fast does it scan a QR code?
The recognition speed is ≤200 ms, allowing near-instant access response.
4. Can it be integrated into elevators or access gates?
Yes. It supports Ethernet communication and works seamlessly with elevators, gates, or turnstiles.
5. What kind of screen does it have?
It features a 0.96-inch OLED screen, which is visible in low light and highly energy-efficient.
