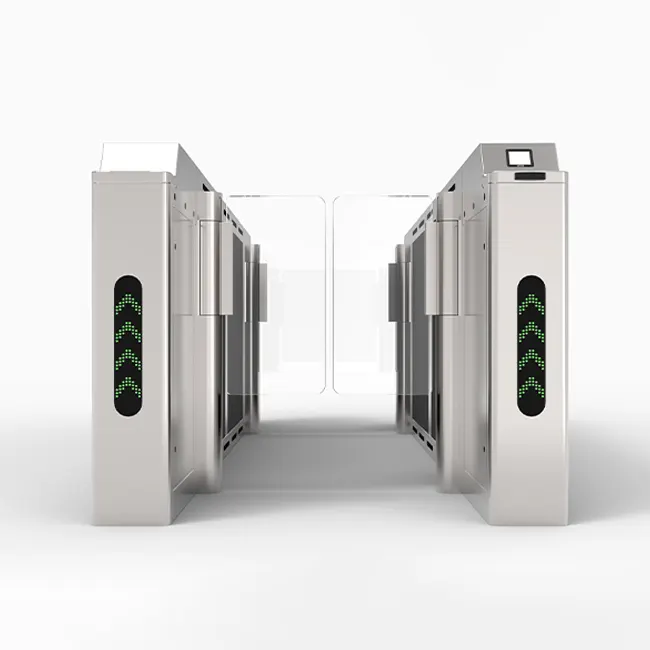

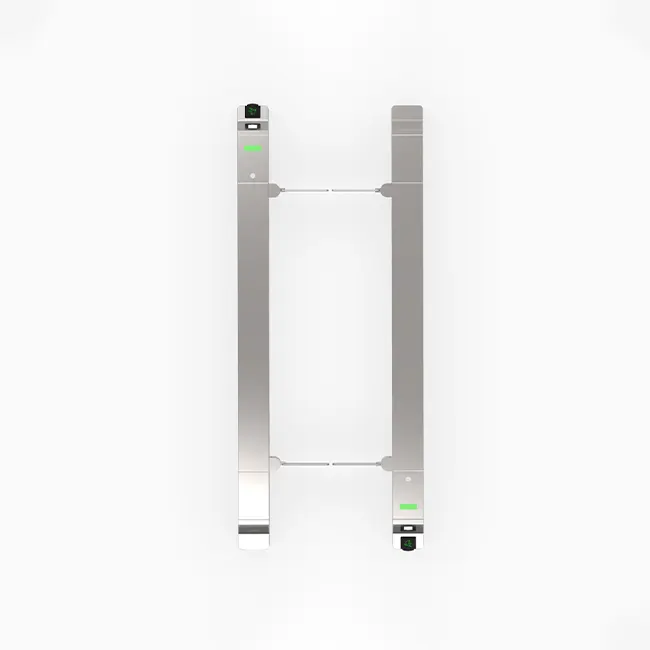

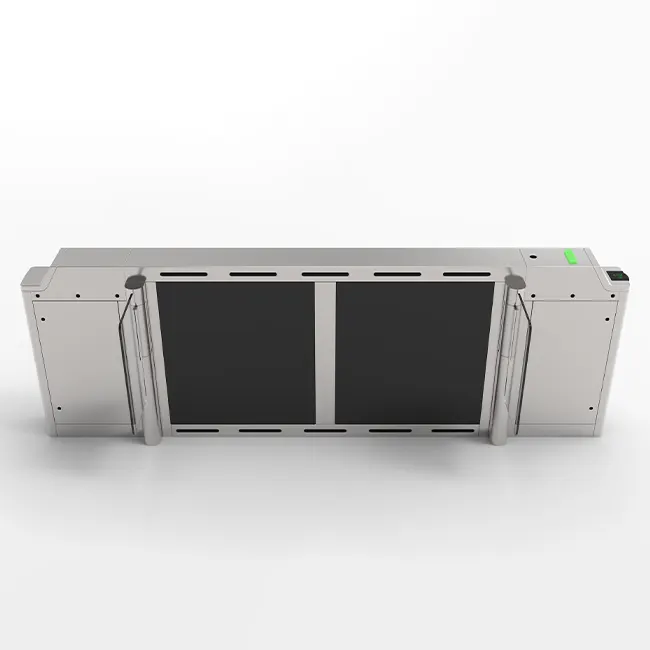

Anti‑tailgating AB Turnstile Gate
IM.HF.01
High-performance pedestrian crossing system made of SUS 304 stainless steel and brushless servo motor, guaranteeing over 15 million maintenance-free cycles. Provides high-speed, reliable access control with authentication options including RFID, face recognition, and QR scan.
-
Passing Speed:≤ 45 people/min
-
Sensing System:16-point infrared sensors
-
Dimensions:length 2850* width 200* height 985mm
-
Drive System:Brushless servo motor (15M+ cycles maintenance-free)
-
Passage Width:Standard 600mm (expandable to 800mm barrier-free access)
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
The anti-tailgating AB turnstile gate provides high standards of pedestrian security by integrating a dual-door interlocking system with smart control. When one door opens, the other locks, ensuring only one person passes at a time. This strict sequencing prevents tailgating and eliminates unauthorized access. Built with stainless steel and tempered glass, it ensures durability and a modern appearance. Inbuilt sensors detect unauthorized access and send alarms to administrators instantly.
Smart Access and Increased Security
Administrators configure the gate with biometric recognition, RFID cards, QR codes, and mobile apps. The dual interlock system uses role-based permissions, granting access only to authorized users. Cloud-based centralized monitoring logs real-time events, enabling traffic analysis, anomaly detection, and audits. Integrated fire alarm systems automatically unlock both doors in emergencies, ensuring fast evacuation.
Features
- Interlocked doors to prevent tailgating.
- Strength and style of stainless steel and tempered glass.
- Supports biometric, RFID, QR, and mobile authentication.
- Instant notification with alarm functions.
- Emergency evacuation fire alarm linkage.
- Adjustable door speed and access logic for different sites.
- Simplified servicing and upgrade design.
The modular design allows easy replacement of sensors, motors, or control boards. Remote diagnostics provide data on cycle counts, sensor performance, and door usage, enabling preventive maintenance. Multi-language interface ensures flexibility for international deployment. The anti-tailgating AB turnstile gate improves safety and efficiency through strict anti-tailgating control, robust engineering, and smart system integration.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
The anti-tailgating AB turnstile gate employs a dual interlocking design that only permits one entry at a time, ensuring maximum pedestrian security and preventing unauthorized access in sensitive facilities.
- Material: SUS 304 Stainless Steel (1.5mm Thickness)
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -30°C to +70°C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
Specifications
Core Technical Specifications
| Dimensions | length 2850* width 200* height 985mm |
| Sensing System | 16-point infrared sensors |
| Drive System | Brushless servo motor (15M+ cycles maintenance-free) |
| Passing Speed | ≤ 45 people/min |
| Passage Width | Standard 600mm (expandable to 800mm barrier-free access) |
| Power Supply Voltage | AC110~220V±10%,50/60Hz |
| Integration | Supports RFID/face recognition/QR scanning /RS485/relay interfaces |
Technical & Features
Technical and security features
- Standard security: Anti-pinch protection, anti-tailgating protection, illegal intrusion alarm, voice broadcast (passage prompts/abnormal alarms), automatic opening of the gate when the power is off (the direction can be set).
- Flexible management: Allows to switch between one-way/bidirectional/free passage modes, automatic reset in case of no passage within 10 seconds (time configurable), external biometric devices
- LI Expansion capability: Electric vehicle/motorcycle passing mode, gate opening delay setting, normal open/closed fire linkage (optional), and switching between Chinese-English interface;
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification:CE,FCC,ISO.
Application
Application Scenarios
- Transportation hub scenarios: airports, subway stations, railway stations, bus stations
- Commercial office scenarios: Stadiums/convention centers
- Public service scenarios: government office buildings, hospital outpatient buildings, inpatient buildings
