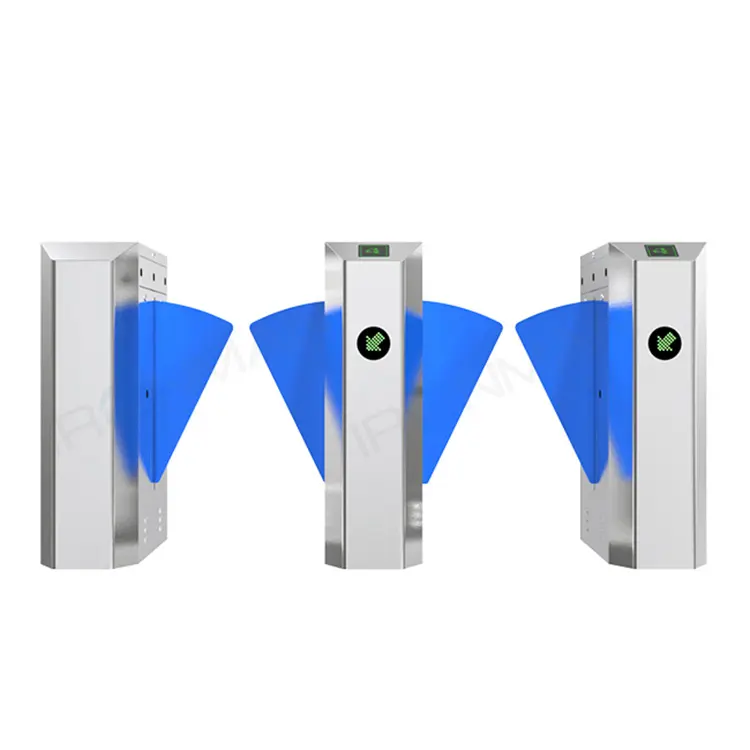

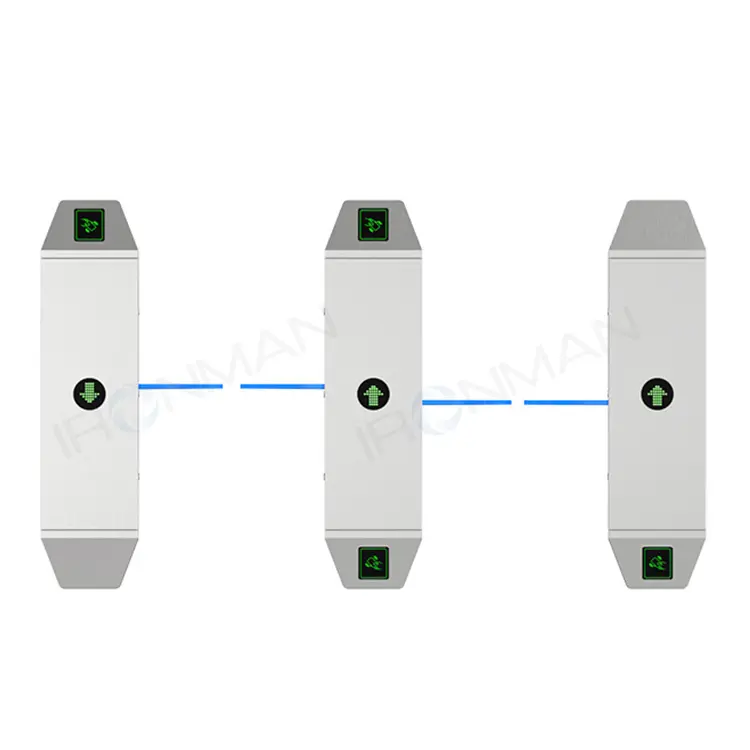

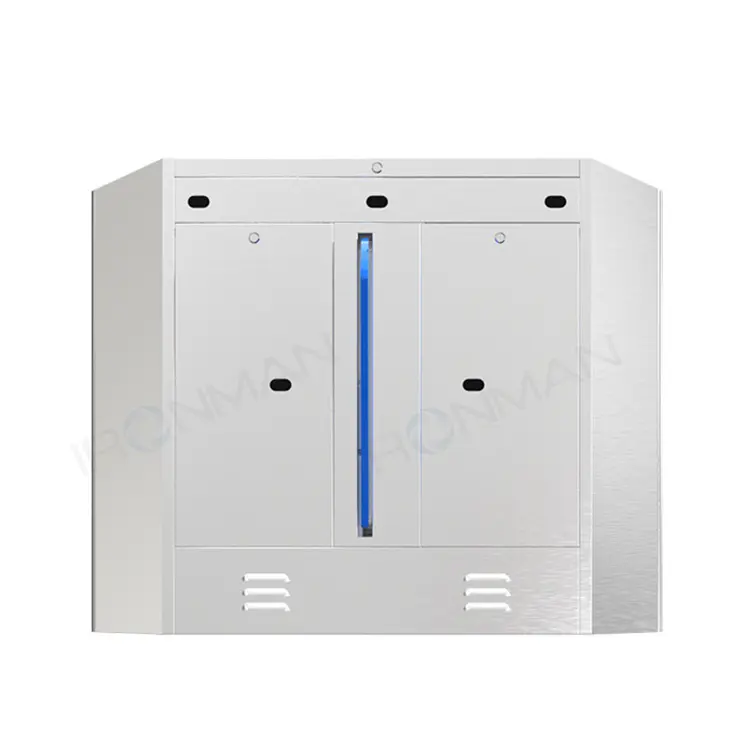

Compact Flap Barrier
IM.Y301
The IM.Y301 is a compact, intelligent flap barrier designed for secure and efficient pedestrian control. With 6-point infrared detection, LED guidance, and real-time alerts, it ensures smooth access while preventing unauthorized entry. Its durable stainless steel housing and weatherproof performance make it ideal for offices, transport hubs, schools, and public facilities.
-
Passage Width:600mm
-
Material:Stainless Steel 304
-
Passing Speed:≤ 40 people/min
-
Sensing System:6-point infrared sensors
-
Dimensions:length 1500* width 120* height 1000mm
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
Compact flap barrier reinvents efficiency in small-space settings. The thin but strong frame allows it to fit into small aisles. Hence, it offers maximum functionality as far as access control is concerned. The system, regardless of being installed in renovated areas or in new small lobbies, provides a safe guided flow of all users.
There are also flap arms of the system that open and close in quick time depending on valid credentials- guarantees the continuous flow at the best times.
The 6-pair infrared sensors act as a powerful detection grid to observe the behavior of tailgating, attempts to intrude and abnormal access. In case of such actions, alert visual and audio signals are generated immediately to alert the security personnel.
Features
- Dreamliner flat structure in minimal spaces.
- Enhanced safety 6 infrared sensors of precision.
- Anti-wear surface treated stainless steel body.
- Live LED display with real time access feedback.
- RFID-compatible, QR code-compatible, biometric modules-compatible.
- Voice alerts to direct the movement of pedestrians.
- Passage opening in case of fire alarm or power outage.
- Single or dual-direction operation.
Compact flap barrier has modular control board configures conveniently hence making it apt in sites where access policies are intricate. In addition, the machine has anti-clamp logic that triggers the device to reverse or halt in case an obstacle is met.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
Compact flap barrier offers intelligent, space-saving access control for narrow entry points in offices, schools, and stations. Its stainless steel design integrates 6-pair infrared detection, visual alerts, and LED guidance for seamless and secure pedestrian flow.
- Material:Stainless Steel 304，upper cover 1.2mm，Housing body 1.0mm
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -30C to +70C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
Specifications
Core Technical Specifications
| Dimensions | length 1500* width 120* height 1000mm |
| Sensing System | 6-point infrared sensors |
| Drive System | full height direct drive movement |
| Passing Speed | ≤ 40 people/min |
| Passage Width | 600mm |
| Power Supply Voltage | AC220±10%V 50HZ |
| Integration | Supports ID card/IC card/QR code recognition/RS485/relay interfaces |
Technical & Features
Technical and security features
Comprehensive Monitoring with Infrared Detectors:
The 6 pairs of infrared detectors offer all - round monitoring of the passage area. They can accurately detect the presence, movement, and potential tailgating behavior of pedestrians, ensuring that only authorized individuals pass through smoothly.
Intuitive LED Display:
The built - in LED display serves as an interactive interface, providing clear instructions and real - time status information to users. It guides pedestrians through the access process, reducing confusion and improving access efficiency.
Enhanced Security with Alert Display:
The alert display for pedestrian access gates immediately notifies both users and security personnel of any abnormal access situations, such as unauthorized entry attempts or system malfunctions. This timely warning mechanism significantly strengthens the security of the controlled area.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification：CE,FCC
Application
Application Scenarios
- Office complexes and corporate buildings
- Subway stations, airports, and train terminals
- Stadiums, arenas, and entertainment venues
- Schools, universities, and residential communities
- Shopping malls, exhibition centers, and industrial facilities
