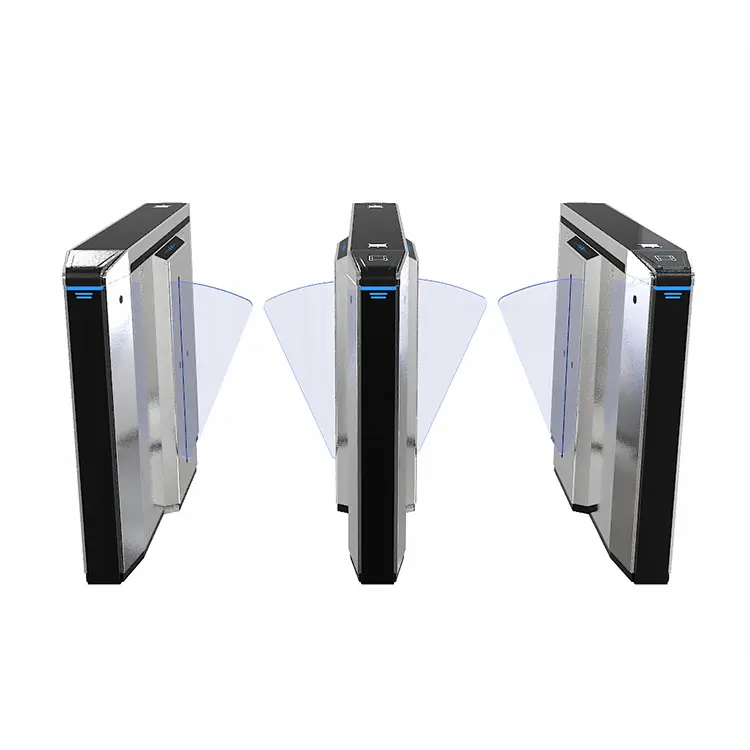

Flap Barrier Turnstile
IM.XY.02
The IM.XY.02 is a high-performance pedestrian flap barrier combining robust stainless steel construction, multi-point infrared detection, and intuitive LED guidance. Engineered for secure, smooth access control in high-traffic environments such as transit hubs, offices, and campuses, it offers reliable protection with smart, user-friendly operation.
-
Passage Width：550mm
-
Passing Speed：≤ 40 people/min
-
Material：SUS stainless steel 304 material
-
Sensing System：8-point infrared sensors
-
Dimensions：length 1500* width 280* height980mm
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
Flap barrier turnstile. allows people to move smoothly in places with heavy traffic of pedestrians. The structure is made out of hard stainless steel and therefore can be worn out easily on a daily basis without any scars or other marks as well as being sleek and professional in appearance.
There are several infrared sensors where they are strategically located to detect the presence of tailgating, unauthorised entries, and the presence of obstacles. These are used together with LED direction lights to provide the user with a clear guide and increase the level of interaction with the system and minimize delays to entry. The system has high throughput even at peak hours due to its high speed servo drive system.
Features
- Anti-tailgating and safety detectors Multi-point infrared sensors.
- Real-time status indicators built in LEDs.
- Silent and fast wing operation Brushless motor drive.
- Allows configurable logic dual-direction passage.
- Companies with access control (RFID, biometric, QR code) can integrate with it.
- Stainless steel enclosure with flaps made of tempered acrylic.
- Auto restart in case of no validation.
- Emergency exit in the case of power outage or fire alarms.
It has a modular internal design which makes it easy to maintain or upgrade in future. The modern access technology along with the human-machine interaction enables the flap barrier turnstile to be an efficient and reliable tool in the contemporary fast-moving pedestrian foot-traffic.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
Flap barrier turnstile streamlines pedestrian access with intelligent control, infrared detection, and high-speed response. Designed for high-traffic areas like transport hubs and offices, it balances efficiency and safety.
- Material：SUS stainless steel 304 material + black paint, the machine thickness of 1.5mm
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -30C to +70C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
Specifications
Core Technical Specifications
| Dimensions | length 1500* width 280* height980mm |
| Sensing System | 8-point infrared sensors |
| Drive System | Brushed Motor |
| Passing Speed | ≤ 40 people/min |
| Passage Width | 550mm |
| Power Supply Voltage |
AC220±10%V 50HZ |
| Integration | Supports ID card/IC card/QR code recognition/RS485/relay Interfaces/two-dimensional code recognition |
Technical & Features
Technical and security features
LED Display：
Delivers clear visual cues (e.g., access status, operation instructions) to guide users, enhancing usability and operational transparency.
8 Pairs of Infrared Detectors:
Ensures precise pedestrian detection, preventing tailgating, unauthorized entry, and accidents. The multi-point infrared array monitors passage zones in real time, guaranteeing smooth and safe traffic flow.
Alert Display for Pedestrian Access Gates:
Provides instant status alerts (e.g., "Open," "Closed," "Restricted") via intuitive indicators, enabling quick identification of gate operations and security states.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification：CE,FCC
Application
Application Scenarios
- Office complexes and corporate buildings
- Subway stations, airports, and train terminals
- Stadiums, arenas, and entertainment venues
- Schools, universities, and residential communities
- Shopping malls, exhibition centers, and industrial facilities
