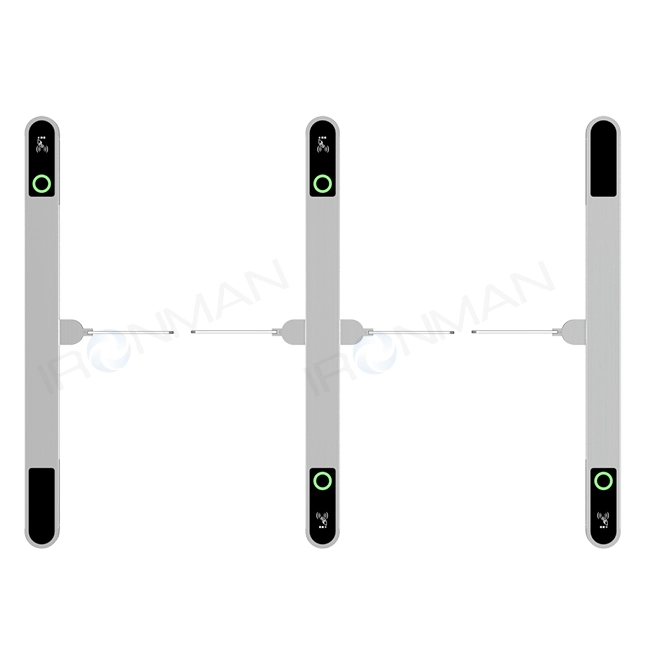

High Throughput Speed Turnstile
IM.ST601
The IM.ST601 is a speed gate that is made of stainless steel and is used in high traffic areas. The 8-point infrared accuracy, high-speed servo-operated access and intelligent anti-tailgating detection make it a reliable and fashionable entrance control system capable of doing a commercial, industrial and city security.
-
Passage Width:≤1300 mm
-
Passing Speed:≤ 45 people/min
-
Material: SUS 304 Stainless Steel (1.5mm Thickness)
-
Dimensions:length 1500* width 120* height 1000mm
-
Sensing System:8-point infrared sensors (expandable to 12 pairs)
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
High throughput speed turnstile systems offer specific solutions for locations where speed and precision are of the utmost importance. Metro stations, airports, corporate lobbies, stadiums etc make use of such turnstiles to ensure smooth flow of feet without interfering with their security. This system uses a fast-beat authentication, unlike traditional gates that take more than a second to authenticate a person.
The physical blows and common wear and tear are resisted by the gate's high-quality stainless steel construction. Moreover, its smooth and modern design is in line with the design of high-end social and business areas. The housing has sophisticated sensors, typically eight or more infrared points that detect entry, tailgating and directional offenses.
Features
Smart Features guarantees the entrance of only authorized personnel, and the system notifies security immediately. Additionally, LED visualization signs and optional voice prompts assist users in an intuitive way to reduce the hesitation speed and enhance the flow.
- Access cycle of high pedestrian flow of 1 second.
- Anti-tailgating and safety detection infrared sensors 8+.
- Stainless steel frame having smooth movement wing design.
- RFID, biometric, verification of QR codes.
- Voice and LED directions in order to navigate.
- Combined fire alarm reaction to the emergency cases.
- An operation with minimal noise, which is appropriate in the interior lobbies.
- Easy servicing and maintenance due to a modular design.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
The high throughput speed turnstile delivers rapid, secure, and intelligent pedestrian flow management for high-traffic environments. Its advanced motion control and multi-point sensing allow for 1-second single-person access, reducing congestion while maintaining reliable verification.
- Material: SUS 304 Stainless Steel (1.5mm Thickness)
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -30°C to +70°C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
- Design: Hairline finish
Specifications
Core Technical Specifications
| Dimensions | length 1500* width 120* height 1000mm |
| Sensing System | 8-point infrared sensors (expandable to 12 pairs) |
| Drive System | Brushless servo motor (15M+ cycles maintenance-free) |
| Passing Speed | ≤ 45 people/min |
| Passage Width | Standard 550-900mm (expandable to 1200mm barrier-free access) |
| Power Supply Voltage | AC110~220V±10%,50/60Hz |
| Integration | Supports RFID/face recognition/QR scanning /RS485/relay interfaces |
Technical & Features
Technical and security features
Safety Features:
Real-time anti-pinch (0.1s automatic rebound upon obstruction)
Intrusion alarm (audio-visual alerts + remote platform sync)
Anti-tailgating and dwelling detection
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification:CE,FCC,ISO
Application
Application Scenarios
- Enterprise security: industrial parks/data centers
- Commercial spaces: stadiums/conference centers
- Smart cities: libraries/hospitals
