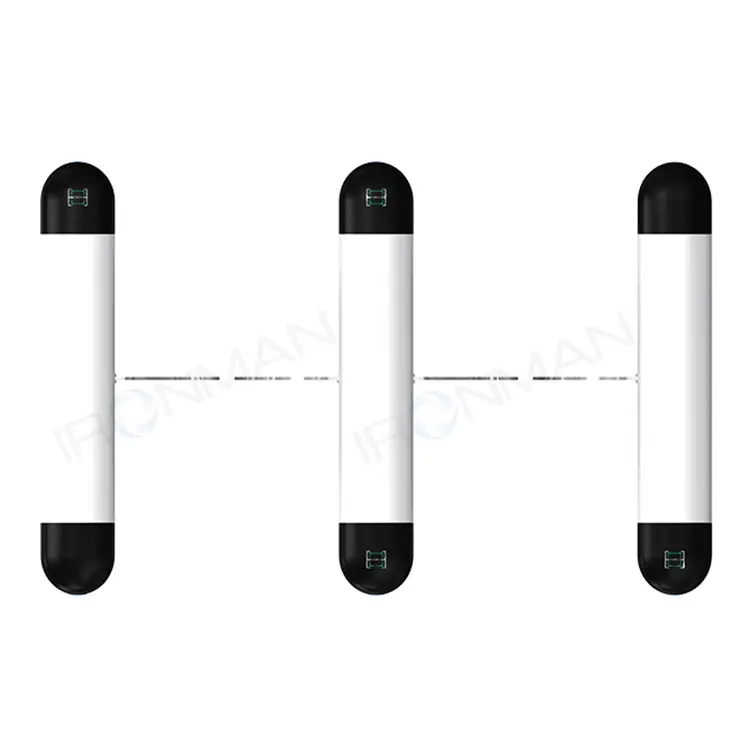

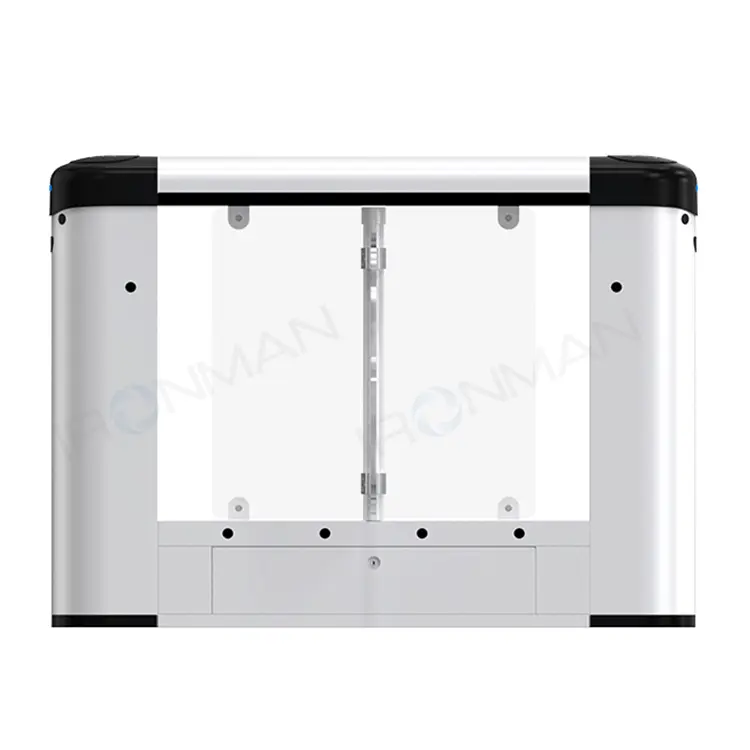

Kindergarten Swing Gate
IM.B223
Designed for kindergartens and amusement parks, the TJ-B223A features a child-safe acrylic arm, cartoon-style design, and intelligent access control. With smooth anti-pinch operation and custom-width options, it ensures secure and fun entry management for young visitors.
-
Channel Width: ≤710mm
-
Infrared detection: 6 pairs
-
Material: Whole machine 1.2mm, SECC + SPCC
-
Working Environment Temperature: -30℃ ~ +70℃
-
Dimensions (can be customized) : length 1200* width 200* height 900mm
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
Flap turnstile gate is the smart access to pedestrians in the places where space and security count. Its slender stainless steel casing makes the system blend in well with the contemporary access points including office premises, transportation stations, and learning centers. It is user-friendly and focused on user flow in addition to real-time management.
The gate has 6-pair infrared sensors, which are used to detect human presence and movement accurately. These sensors activate instant response in case of tailgating, forced entry or reversal, thereby ensuring safe access. Status updates are easily displayed by LED indicators, whereas voice prompts assist users in following the access procedures.
Furthermore, the flap turnstile gate is quick to react once every successful checkout is completed, either by RFID card, QR code, or biometric authentication, and there are delicate throughput even in the most rush time. Consequently, the facilities are able to deal with traffic of high volume without compromising on security or operational efficiency.
Features
- Narrow or high-traffic space Slim, stainless steel body.
- Real time user guidance LED interface and voice system.
- Infrared 6-point detection grid of anti-tailgating and intrusion detection.
- Quick retraction of the flaps to provide a smooth and continuous access.
- Two-way control and adjustable access controls.
- Auto-opening fire alarm emergency response system.
- Face recognition and QR scanning ports are integrated.
- Lockable top cover to easily access the maintenance.
The structure is also safety-oriented, besides the performance. In case of any object which obstructs the path of the flap to go, the system stops the movement immediately to avoid harm. Hence, this renders it safe to children, the aged using it or in the communities where unexpected conduct can take place.
Moreover, it can be used even under unstable weather conditions because of its weather-resistant construction, which is compatible with semi-outdoor settings, such as the entrance of a subway or a school yard. The modular internal structure makes it easy to upgrade or service the equipment by technicians. This improves serviceability in the long term and minimizes system outage.
Conclusively, this flap turnstile gate is fast, intelligent and low profile in design, which are all features that are compatible with high-rise access conditions.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
Kindergarten swing gate is tailored for school environments, especially for early education campuses where safety and comfort matter most. With soft-close arms, low-height design, and colorful visual indicators, it ensures children pass safely.
- Material: 1.2mm SPCC with White;
- Arm Material: 10MM Acrylic
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -35°C to +75°C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
- Design: Carbon structural steel plate SPCC
Specifications
Core Technical Specifications
| Dimensions | 1200*200*900MM |
| Sensor | 6 pairs |
| Drive System | Brushless motor (24~36VDC) |
| Passing Speed | ≤30 persons/minute (memory mode can be turned on) |
| Passage Width | 600-1200mm(Customizable) |
| Power Supply Voltage | AC220V±10%,50/60Hz |
| Access control | Supports RFID/Face recognition/QR scanning /RS485/Relay interfaces etc. |
| contact | RS232 RS485 |
Technical & Features
Technical and security features
Safety Features:
Real-time anti-pinch (0.1s automatic rebound upon obstruction)
Intrusion alarm (audio-visual alerts + remote platform sync)
Anti-tailgating and dwelling detection
Alarm function:
with sound and light alarm function.
Access control:
External ports can connect to a variety of biometric devices
Anti-interference:
It can prevent the abnormality of the gate caused by external factors such as electromagnetic interference.
Passage mode setting:
One-way passage, two-way passage, free passage , etc. can be set through the buttons on the main control panel
Automatic reset:
Default is 10 seconds, the pass time can be set by switch
Power off and open the gate:
open the gate after power off
Adaptability
Global Market Adaptability
- Voltage: 110-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification:CE,FCC,ISO
Application
Application Scenarios
- indoor/outdoor/semi-outdoor pedestrian/bicycle passing places;
- such as: primary and secondary schools/office buildings/hotels/ residential communities/factory parks/hospitals/corporate and public institutions/government auditoriums/GYM, etc
