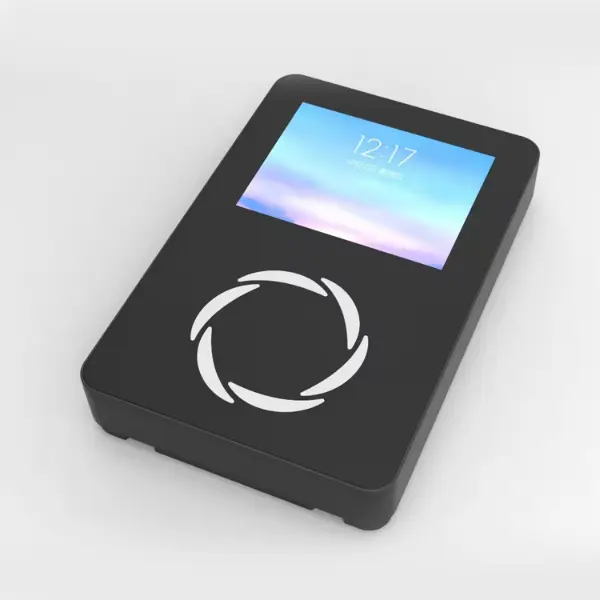

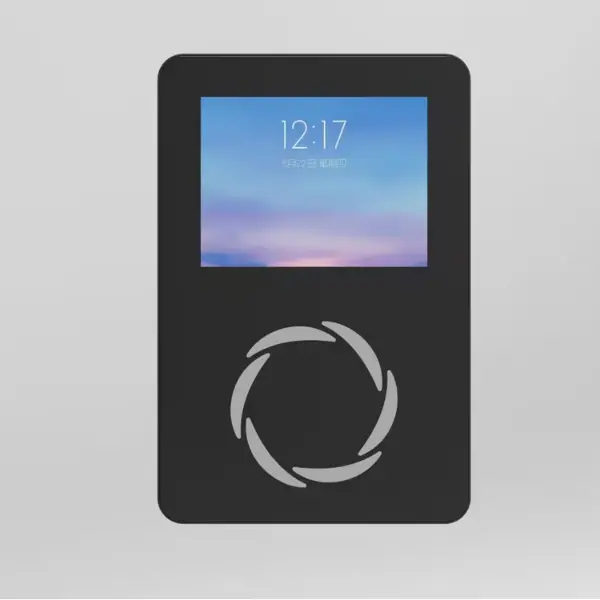

Palm Vein Terminal
IM.H500
Fast and secure palm recognition with 5–12cm distance and multiple users with user-friendly screen, sound, and indication lights.
-
Palm proximity sensing.
-
5cm~12cm distance range for Palm recognition.
-
Screen, audio and indicator ring light for user interactions
-
High security level, supporting a database with tens of thousands of entries.
-
Quick palm-scanning experience within seconds, compatible with multiple user scenarios
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
The palm vein terminal is a qualified biometric and convenient terminal, which becomes a reliable solution in the current access and attendance system. It uses the unique pattern of veins on the palm of a person with the help of near infrared light. The light is very precise and eradicates the possibility of a forged certificate. Furthermore, it helps to prevent the spread of germs in heavily-trafficked areas such as hospitals, offices and schools. Hence, it offers sub-second validation and keeps the queues to sub-second and the entry-flow manageable.
Information Integration and Diversified Utilization
Palm vein terminal is applicable in every business where hygiene and security are of high importance. It integrates with access control software, time attendance, and visitor management systems. Also, it provides multi-factor authentication (a combination of palm vein scan, RFID card, PIN or mobile apps) for multi-layered protection. Connectivity options include TCP/IP, Wi-Fi and RS-485 making it possible for standalone or networked applications. The multi-language interface provides for the global deployment.
Features
- Contactless palm vein recognition and hygienic operation.
- Verification speed in less than one second.
- High accuracy and unique vein pattern recognition.
- Integration with visitor and attendance and access control systems.
- RFID-based one-time authentication, PIN or mobile authentication.
- Weatherproof, indoor and semi outdoor construction.
- Easy servicing and upgrade modules.
Modular construction allows sensors, boards, or housings to be replaced without disrupting the service. Remote diagnostics give information about device performance, usage cycles, and recognition accuracy for preventive maintenance purposes. Data privacy is accomplished by using encrypted communication, Palm Vein terminal provides a combination of security, hygiene and smart connectivity that makes access management fast and ready for the future. It offers the organizations a secure and modern way of identity verification that guarantees convenience and high security.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
The palm vein terminal uses advanced biometric recognition technology to deliver secure, hygienic, and contactless access control. With fast authentication and strong accuracy, it enhances identity management for offices, schools, hospitals, and industrial facilities.
- Screen: 2.8-inch,touchable
- Temperature: 0℃~55℃（Working Environment）
- Humidity: Relative humidity :0%~95%, no condensation（Working Environment）
- ESD Rating: Contact discharge ±8KV, air discharge ±12KV
- IP Rating: IP55 (front surface of the device)
Specifications
Core Technical Specifications
| Dimensions | length 80* width 120* height 44.65mm |
| Camera | Palm camera, supporting palm print and palm vein imaging |
| Palm Scan Distance | 5~12cm |
| Psensor Sensing Distance | 5~30cm |
| Storage Module | EMMC: 4GB |
| Network | Supports Wi-Fi 11b/g/n 2.4G single band |
| Power supply | 12V/2A |
Technical & Features
Key Features
- Farthest Distance that is Recognized
- Recognition distance: 5cm–12cm.
- Offers convenience and accuracy at the same time for a natural experience
- Palm Proximity Sensing
- Intelligent palm proximity detection - starts recognition automatically.
- No manual operation is required, which increases operational efficiency
- Immediate and Intuitive Experience of Recognition
- Authenticates within less than one second.
- Reduces waiting time - ideal for offices, transport and retail scenarios.
- Multi-Purpose Compatibility with Scenario
- Flexible design for a variety of applications: enterprise access, financial authentication, community access, public services, etc.
- Compatible with other systems in a smooth and reliable manner.
- Intuitive User Interaction
- Screen, audio and indicator ring light to give full user feedback
- Visual cues, voice notifications and coloured lights (green = success, red = failure).
- Large Scale Database and High Security
- High security Palm vein tech that is difficult to fake or copy.
- Supports tens of thousands of entries -- the true for large organizations.
Adaptability
Global Market Adaptability
- Power Supply: 12V/2A
- Certification: CE, FCC
Application
Application Scenarios
- Commercial Buildings and Office Complexes
- Financial Institutions
- Smart Communities
