Slim Column Turnstile
IM.ST609

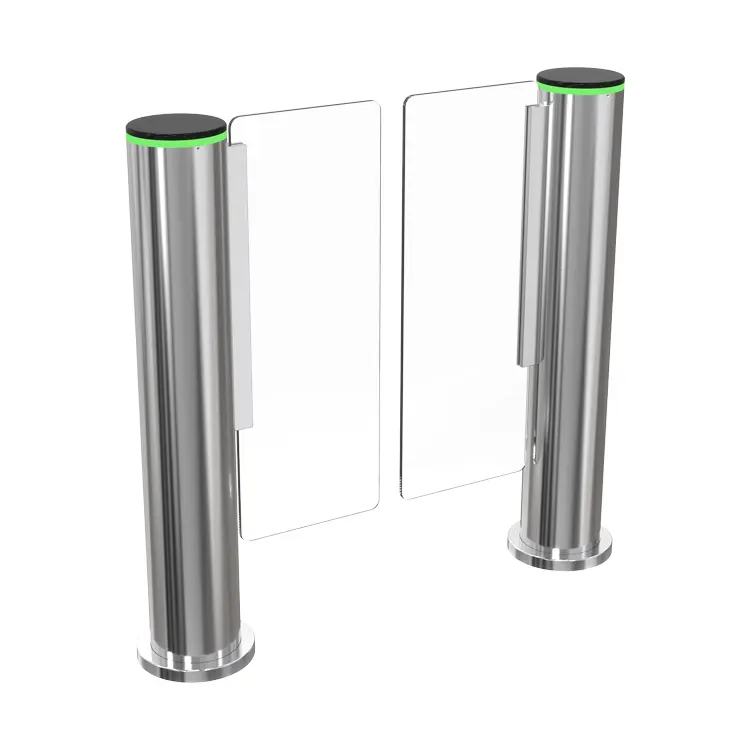

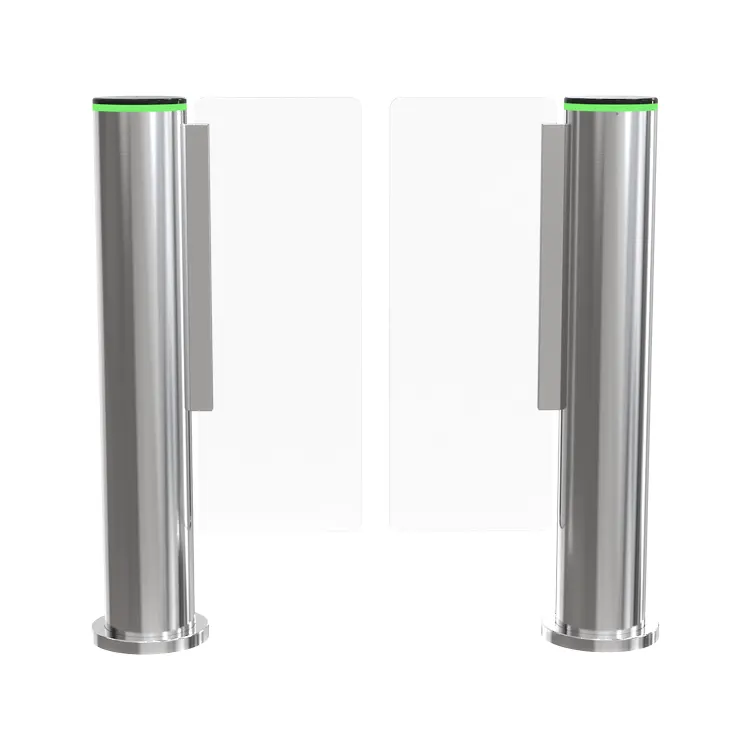

Our Slim Column Turnstile is a premium access control solution designed for modern entrances in offices, corporate campuses, stadiums, and smart buildings—blending sleek aesthetics with high-performance engineering to redefine efficient, secure pedestrian flow management. Crafted with a SUS304 stainless steel cylindrical body for durability and a minimalist look, it features a transparent swing arm (maintaining visual openness) and a top-mounted traffic indicator light (green for "clear" status) for intuitive feedback, while its high-precision servo motor enables high-speed passage (0.5 seconds per person), precise swing arm positioning, silent operation (≤45dB), and exceptional reliability (12 million cycles MTBF and service life of 12 million operations); additionally, it supports multi-factor authentication (face recognition, card swiping, QR code scanning, etc.) and seamless integration with smart security systems, balancing safety, speed, and durability for versatile access control needs.
-
Dimensions (Customization Accepted): ⌀168*1000mm
-
Material: 2.0 mm thickness 304 stainless steel
-
Drive Motor: Brushless Drive Motor/Servo motor (Optional)
-
Channel Width: ≤1300 mm
-
Traffic Speed: ≤ 45 people/min

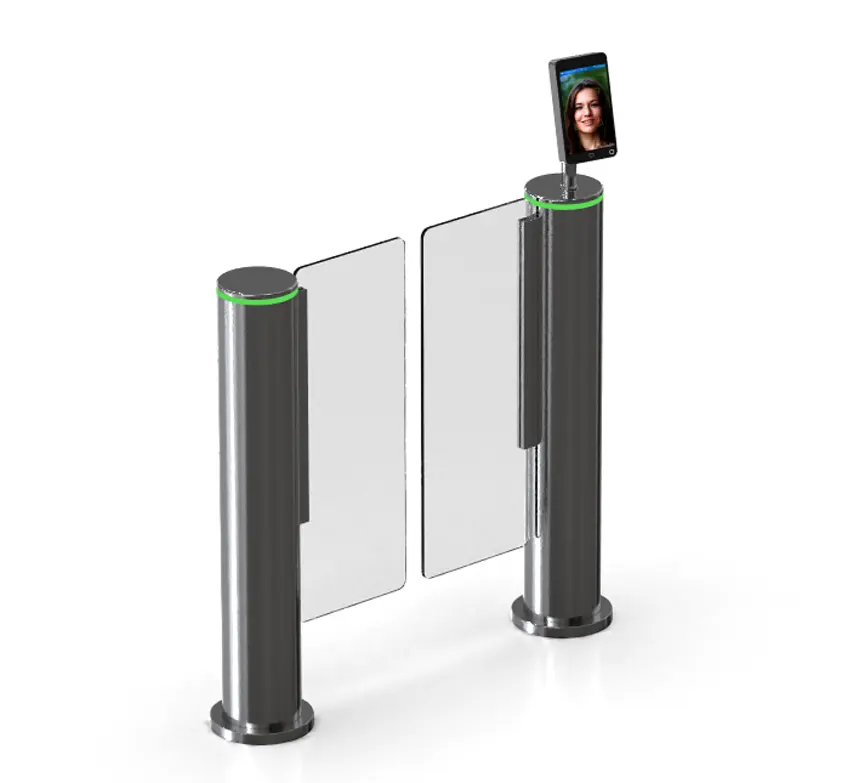

Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
Slim Column Turnstile is a modern, cylindrical-style access control gate designed for high-efficiency pedestrian flow in compact architectural spaces. With a minimalist vertical design and powerful internal drive system, it offers both aesthetic elegance and industrial-grade performance for commercial buildings, transport terminals, schools, and government facilities.

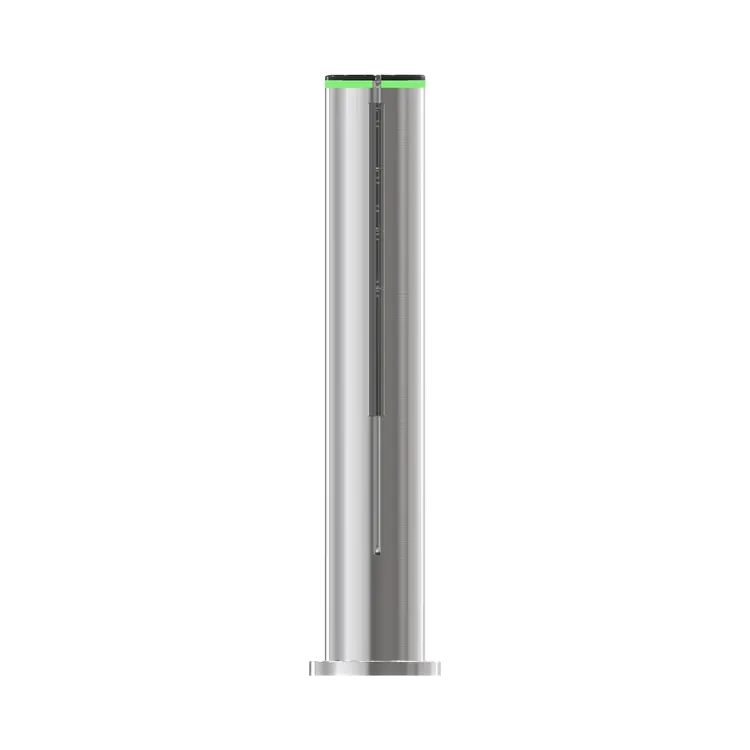

Crafted from 2.0 mm thick 304 stainless steel, the turnstile’s column structure (⌀168 × 1000 mm) ensures exceptional resistance to corrosion and wear while maintaining a sleek, unobtrusive presence. This makes it an excellent fit for indoor or semi-outdoor areas where space and appearance are both critical considerations.
The system supports bi-directional flow, accommodates wide channels up to 1300 mm, and offers smooth motion via either a brushless DC motor or a servo motor depending on application needs. It handles up to 45 people per minute, making it suitable for medium to high-traffic locations.
Advantages
- Ultra-slim column design saves space and blends with modern architecture
- Optional brushless or servo motor for fast, stable gate operation
- Supports extra-wide lanes (up to 1300 mm) for wheelchair or baggage access
- Durable 2.0 mm SUS 304 stainless steel housing for long-lasting performance
- Quiet, low-vibration drive system ideal for indoor public settings
- Minimal installation footprint for compact lobbies and passageways
- Product Details
- Specifications
- Installation and Use
- Adaptability
- FAQ
Product Details
Functional Features
- Bi-directional access control with rapid opening and reset
- Compatible with RFID, QR code, fingerprint, or facial recognition terminals
- Smooth passage for up to 45 users per minute
- Fail-safe mechanism: opens automatically in power loss or emergency scenarios
- LED direction indicators and optional voice prompts for user guidance
- Integration-ready with RS485, Wiegand, or TCP/IP protocols
- Automatic reset after unauthorized entry or timeout
- Floor-mount design with concealed cable routing
Specifications
Core Technical Specifications
| Parameter | Specification |
| Dimensions | ⌀168 × 1000 mm (customization available) |
| Material | 2.0 mm thickness 304 stainless steel |
| Drive Motor | Brushless DC motor or servo motor (optional) |
| Passage Width | ≤1300 mm |
| Traffic Speed | ≤45 people/min |
| Direction | Bi-directional |
| Authentication Modes | RFID, QR code, fingerprint, face recognition (via reader) |
| Communication | RS485 / TCP/IP / Wiegand |
| Emergency Response | Auto-open in power failure/fire alarm |
| Mounting | Floor-mounted, indoor or covered semi-outdoor use |
Installation and Use
Installation Steps
- Determine lane width and mark mounting positions on the floor.
- Secure the base of the column using expansion bolts.
- Connect internal wiring to power, communication, and access control terminals.
- Configure system direction, opening speed, and reader types via control panel.
- Test motor operation, sensor response, and emergency unlocking.
Use Instructions
- Users present a valid credential (card, QR code, etc.) to trigger the gate.
- LED indicators show permitted direction; the arm automatically resets after passage.
- In case of power outage or fire signal, the gate enters fail-open mode automatically.
- Clean stainless steel housing and check motor/sensor monthly for consistent operation.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification: CE, FCC, ISO
FAQ
FAQ
Q1: What is the main advantage of a slim column design?
A: It saves floor space and is ideal for narrow lobbies or minimalist architectural environments.
Q2: Can the turnstile support wide access for trolleys or wheelchairs?
A: Yes. With a maximum passage width of 1300 mm, it supports accessibility requirements and baggage-friendly lanes.
Q3: What are the differences between brushless and servo motors?
A: Brushless motors offer energy efficiency and long lifespan, while servo motors provide higher precision and faster response.
Q4: Can it integrate with facial recognition or QR scanners?
A: Yes. It supports various authentication methods and integrates with third-party systems via RS485, Wiegand, or TCP/IP.
Q5: Is it suitable for outdoor use?
A: It is recommended for indoor or semi-outdoor covered areas. For full outdoor use, a weatherproof model is advised.
