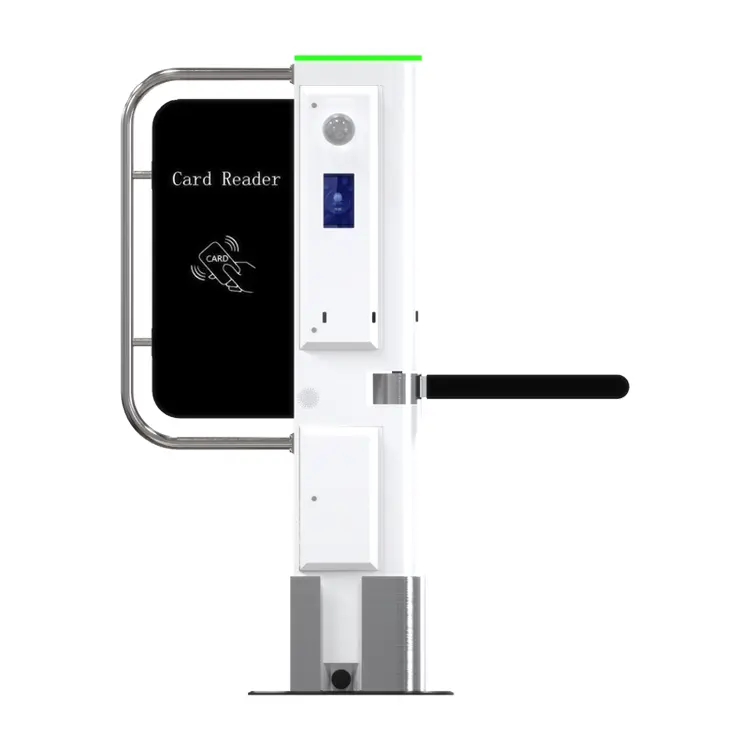

Snow Gate Turnstile
IM.XZB01
The IM.XZB01 Snow Gate Turnstile is a cutting-edge access control solution specifically designed for ski resorts. It integrates multiple advanced technologies to ensure efficient, secure, and user-friendly access management in snowy and cold environments. Made of 1.5mm stainless steel, it is resistant to corrosion, impact, and extreme low temperatures, making it ideal for ski resort conditions. Supports contactless card reading and facial recognition, providing flexible and secure access verification. Equipped with infrared anti-pinch detection to prevent accidents and ensure user safety.
-
Passage width: 600 mm
-
Dimensions: 848*200*1800mm
-
Passing Speed: ≤ 50 people/min
-
Material: 1.5 mm SUS 201 Stainless Steel
-
Service Life: Over 15 million continuous opening and closing cycles
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
Snow Gate Turnstile is a vertical-style, high-throughput access control solution designed for secure and orderly pedestrian management in areas with limited horizontal space. Featuring a sleek and space-efficient structure, this unit is ideal for applications in commercial buildings, residential entries, industrial facilities, and institutional environments that demand reliable access control within narrow lanes.
Built with 1.5 mm SUS 201 stainless steel, the gate body ensures a strong, corrosion-resistant, and long-lasting exterior while maintaining an elegant appearance. Its vertical design—measuring 848 × 200 × 1800 mm—provides a slim footprint, allowing installation in compact corridors and constrained indoor areas.
The standard passage width of 600 mm accommodates standard pedestrian flow while maintaining controlled entry. It is equipped with precision motor mechanisms and a stable gear system that enables passing speeds of up to 50 people per minute, ensuring smooth operation during peak hours.
Engineered for long-term usage, the Snow Gate Turnstile offers a service life exceeding 15 million opening and closing cycles, making it an ideal solution for high-frequency environments.
Advantages
- Slim vertical build saves space without sacrificing performance
- Long service life (15M+ cycles) reduces maintenance and replacement costs
- Faster pedestrian flow (≤50 people/min) minimizes wait times
- Compatible with modern architectural styles and compact lobbies
- Stainless steel body provides excellent durability at competitive cost
- Ideal for office towers, dormitories, gyms, and elevator access points
The Snow Gate Turnstile is particularly well-suited for lobbies, metro-style entrances, elevator halls, and staff-only zones. It can be integrated into centralized access management platforms or deployed as a standalone unit, depending on your system architecture.
With compact dimensions, high-speed response, and extended service life, this vertical turnstile delivers a balanced solution for aesthetics, performance, and space optimization—ideal for modern facility upgrades.
- Product Details
- Specifications
- Installation and Use
- Adaptability
- FAQ
Product Details
Functional Features
- Slim vertical design ideal for narrow indoor installations
- Supports RFID, QR code, fingerprint, or face recognition authentication systems
- Fast throughput: up to 50 users per minute without congestion
- Durable 1.5 mm SUS 201 stainless steel housing resists corrosion and impact
- Passage width of 600 mm allows for smooth, guided pedestrian entry
- Over 15 million tested open/close cycles ensures long-lasting performance
- Optional LED indicator and voice prompt modules for user guidance
- Emergency fail-open function for fire alarms or power outages
- Compatible with RS485, Wiegand, or TCP/IP communication protocols
- Low noise, energy-saving operation for modern access environments
Specifications
Core Technical Specifications
| Parameter | Specification |
| Passage Width | 600 mm |
| Dimensions | 848 × 200 × 1800 mm |
| Material | 1.5 mm SUS 201 stainless steel |
| Passing Speed | ≤ 50 people/min |
| Service Life | Over 15 million opening/closing cycles |
| Authentication Support | RFID, QR, fingerprint, face recognition (via add-ons) |
| Communication | RS485 / TCP/IP / Wiegand |
| Emergency Handling | Auto unlock on power failure or fire alarm |
| Installation Method | Floor-mounted, indoor/semi-indoor |
| Operating Temperature | -20°C ~ +60°C |
Installation and Use
Installation Steps
-
Confirm mounting surface is level and mark base installation holes.
-
Fix the turnstile to the ground using expansion bolts.
-
Connect power, communication cables, and external access terminals.
-
Power on the unit and configure access logic (e.g., one-way or bi-directional).
-
Test gate opening speed, direction, and sensor response.
Usage Tips
-
The turnstile remains locked by default until a valid credential is presented.
-
Direction indicators guide users; flaps automatically reset after passage.
-
In case of fire alarm or power failure, the system automatically unlocks for evacuation.
-
Perform monthly maintenance to check housing integrity, sensor accuracy, and motor response.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification: CE, FCC, ISO
FAQ
FAQ
Q1: Is the Snow Gate Turnstile suitable for narrow or limited space areas?
A: Yes. With a compact footprint of 848×200 mm and a vertical body design, it is ideal for narrow entrances, elevator lobbies, and corridors where space is limited.
Q2: Can this turnstile be integrated with different types of access control systems?
A: Absolutely. It supports standard communication protocols such as RS485, Wiegand, and TCP/IP, allowing seamless integration with RFID, QR code, fingerprint, and face recognition terminals.
Q3: What is the lifespan of this product under frequent use?
A: The Snow Gate Turnstile is built for durability and supports over 15 million opening and closing cycles, making it ideal for high-traffic environments like commercial buildings or staff entrances.
Q4: Does the turnstile open automatically in case of power failure or emergency?
A: Yes. It features a fail-safe mechanism that unlocks the turnstile during power outages or when triggered by a fire alarm system, ensuring safe evacuation.
Q5: Is it possible to customize the height or material of the unit?
A: Yes. Custom sizes, materials, and finishes can be provided based on project requirements. Contact our sales team for OEM/ODM customization support.
