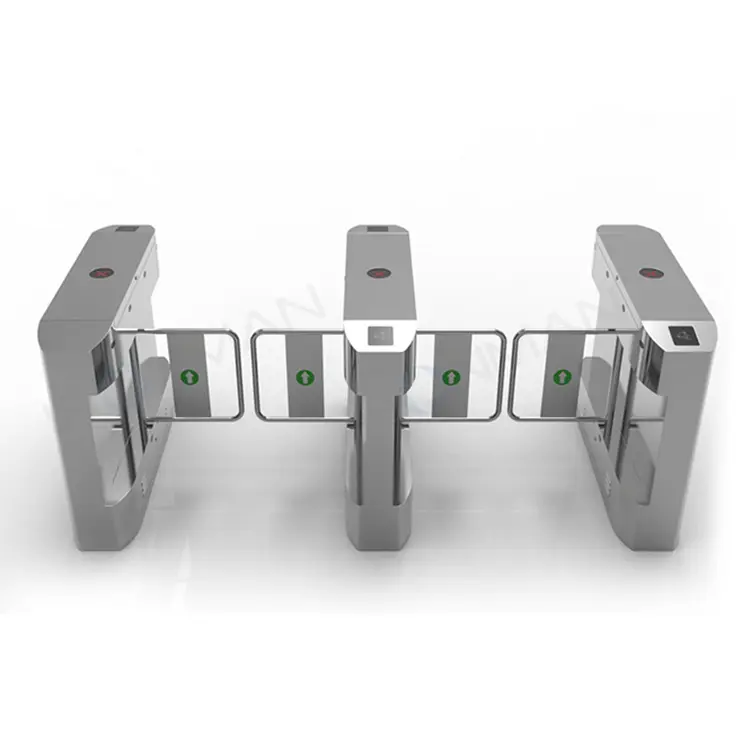

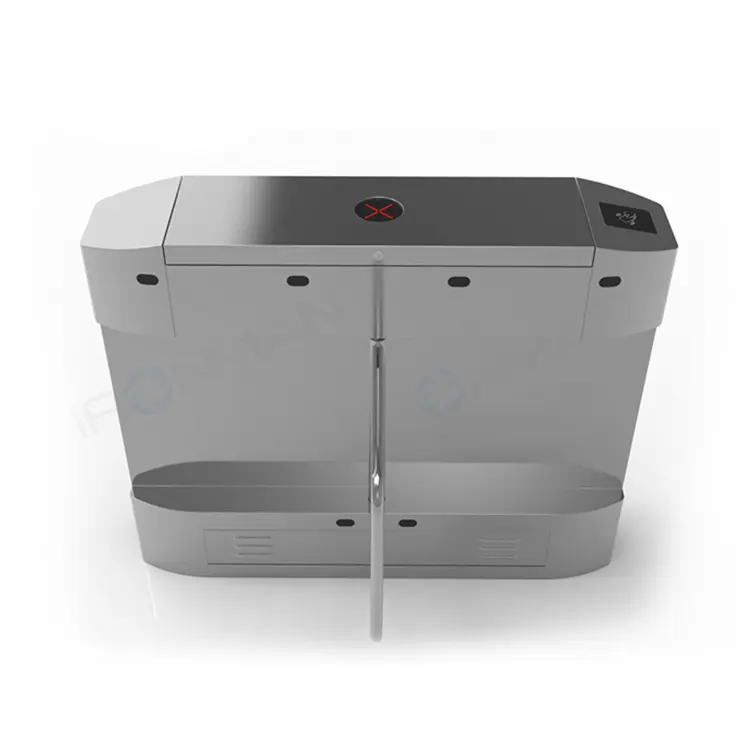

Stainless Steel Swing Barrier Gate
IM.B213
The IM.B213A is impact resistant and has smart access control with a reinforced stainless steel construction and wide customized passage width. It is perfect to be used both indoors and outdoors in schools, office parks, and other places where people gather and offer safe, efficient and reliable entry management.
-
Sensor：6pairs
-
Material:：SUS304
-
Dimensions：1200*280*980mm
-
Passing Speed：≤30 persons/minute
-
Passage Width：600-1200mm(Customizable)
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
The stainless steel swing barrier gate is a combination of strength, accessibility and reliability in its functionality hence making it a reliable one to use in busy places. Its cabinet contains high quality stainless steel that has low chances of being corroded, scratched and hit. The brushless motors have soft-start and soft-stop logic. Hence, It ensures a quiet and stable movement of the arm and prevents accidents by safety sensors sensing obstacles in real-time and halting movement. Tempered glass or acrylic swing arms contribute to the visual quality, as well as durability, and are in line with the modern architecture.
Smart Control And System Interoperability
The stainless steel swing barrier gate can be fitted with RFID cards, facial recognition, mobile NFC or QR code authentication. The system promotes the one-way or two-way traffic, dwell time, and anti-tailgating safeguard of better security. Interfaces like Wiegand, RS-485, and TCP/IP are standard and thus you can be easily integrate it to third-party access platforms. In addition, centralized management software is used to gather access logs, implement role-based permissions and offer real-time monitoring of various facilities.
Features
- Stainless steel cabinet of high grade and corrosion-resistant.
- Large lanes to accessibility and carrying of luggage.
- Silent brushless motor having soft-start/soft-stop accuracy.
- Anti-tailgating observed and barrier protection sensors.
- RFID, biometric, NFC, or QR verification.
- Standardized architecture to facilitate immediate upkeep and update.
- LED displays and optional voice prompts to follow.
Modular construction makes maintenance easier since it is possible to easily replace an arm, motor, or control board without having to break down the entire system. Remote diagnostics monitors cycle counts, performance of the motor, and health of sensors. Thus preventing failures by carrying out preventive maintenance. With robust stainless steel casing, noiseless operation and smart access technology, the stainless steel swing barrier gate provides secure, efficient, and durable pedestrian control in offices and other governmental institutions of today.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
Our stainless steel swing barrier gate offers wide, durable, and silent access management. Designed with strong materials and intelligent control, it ensures smooth pedestrian flow for offices, schools, libraries, and public facilities while supporting accessibility for luggage and wheelchair users.
- Material: Top cover 1.2 MM SUS304 ;Body 1.0 MM SUS304
- Arm Material:SUS304 Pipe bending /10MM Acrylic
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -35°C to +75°C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
- Design：Steel frame structure/standard stainless steel shell
Specifications
Core Technical Specifications
| Dimensions | 1200*280*980mm |
| Sensor | 6pairs |
| Drive System | Brushless motor (24~36VDC) |
| Passing Speed | ≤30 persons/minute (memory mode can be turned on) |
| Passage Width | 600-1200mm(Customizable) |
| Power Supply Voltage | AC220V±10%，50/60Hz |
| Access control | Supports RFID/Face recognition/QR scanning /RS485/Relay interfaces etc. |
| contact | RS232 |
Technical & Features
Technical and security features
- Safety Features: Anti-pinch (0.1s automatic rebound when it hits an obstacle) in real-time and intrusion detection (audio-visual notification and remote platform synchronization)
- Alarm Function: With sound, light alarm capability.
- Access Control: There are many types of biometric devices that are connected to external ports.
- Anti-interference: It is able to avoid the deviation of the gate by the outside parameter like the electromagnetic interference.
- Passage Mode Setting: One-way passage, two-way passage, free passage etc can be established by the buttons on the main control panel.
- Automatic Reset: The pass time may be programmed by switch, default is 10 seconds.
- Power Off and Open the Gate: Open the gate after power off.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification：CE,FCC,ISO
Application
Application Scenarios
- indoor/outdoor/semi-outdoor pedestrian/bicycle passing places
- such as: primary and secondary schools/office buildings/hotels/ residential communities/factory parks/hospitals/corporate and public institutions/government auditoriums/GYM, etc
