Station Turnstile Gate: Which Gate Type Fits Your Station, AFC System, and Throughput Requirement
2026-04-05
For a high-volume railway station or metro platform, the correct station turnstile gate is a flap barrier for standard fare lanes and a smart speed gate for premium, high-throughput termini. Both deliver 40–80 ppm per lane, full AFC ticketing integration, and outdoor IP resilience suited to a transit station environment. Per NFPA 101 Life Safety Code, every station gate on a designated egress path must fail-safe open within 3 seconds on fire alarm or power loss.
This guide gives transit authority procurement officers, station project managers, AFC system integrators, and EPC contractors a gate type comparison table on transit-specific criteria, a station scenario matching section, a dwell-event throughput formula, an AFC integration matrix, outdoor IP rating guidance, ADA requirements, and a direct path to a factory-direct quote. Start with the Ironman station gate range at the railway station pedestrian turnstile page.
Station Turnstile Gate Types — Compared on Transit-Specific Criteria
Five gate types cover the full range of station environments. Each fits a different station function, throughput load, and outdoor resilience requirement. The table below compares them on the criteria that matter for a transit specification.
| Gate Type | Throughput | AFC Integration | Outdoor IP | ADA / Wide Aisle | Fare Enforcement | Best Station Context | Unit Range |
|---|---|---|---|---|---|---|---|
| Flap Barrier | 40–60 ppm | RFID, QR, EMV, NFC | IP54 / IP65 opt. | Wide lane variant | High | Railway platform, metro standard lane | $450–$3,000 |
| Smart Speed Gate | 50–80 ppm | RFID, QR, EMV, NFC, biometric | IP54 | Wide lane variant | Moderate | Premium terminus, high-throughput station | $1,300–$8,000 |
| Tripod Turnstile | 25–40 ppm | RFID, QR, barcode | IP54 | Separate ADA lane | Moderate | Secondary entrance, BRT, budget retrofit | $200–$1,200 |
| Full Height Turnstile | 20–30 ppm | RFID, biometric | IP65 | Separate ADA lane | Maximum | Unmanned outdoor platform, perimeter | $600–$4,000 |
| Glass Sliding Gate | 30–50 ppm | RFID, QR, NFC | IP54 | Wide lane variant | Moderate | Premium mezzanine, city terminal | $800–$4,000 |
Flap Barrier and Smart Speed Gate — High-Volume Station Fare Lanes

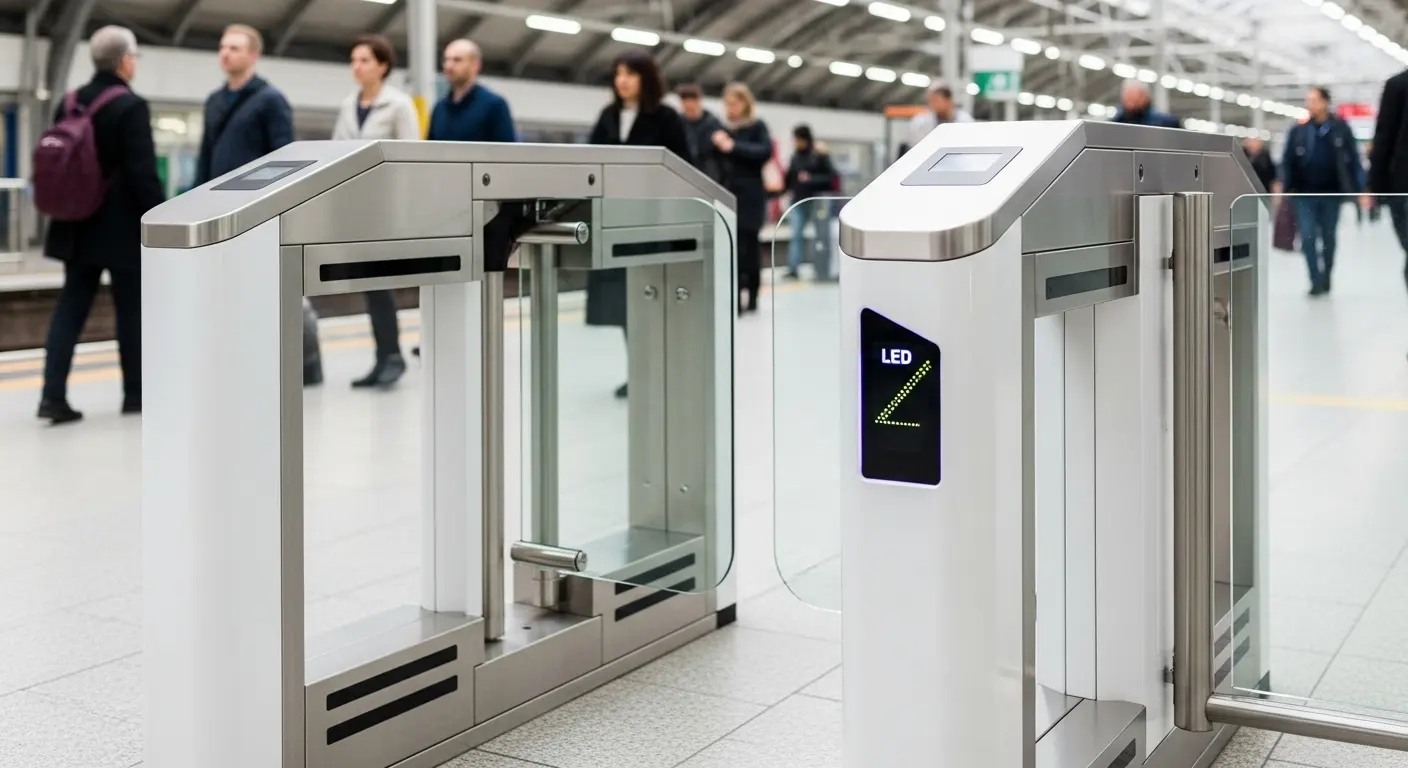

The flap barrier is the standard station turnstile gate for high-volume railway and metro station fare lanes. At 40–60 ppm per lane, it clears the peak passenger burst during a train dwell event without queue formation. Its sensor-based anti-tailgating triggers an alarm before a second person completes passage — combining physical and electronic fare enforcement above what a tripod arm delivers alone.
The smart speed gate suits high-throughput railway termini and premium city station environments. At 50–80 ppm and a 0.2-second unlock time, it processes peak passenger volumes faster than any other waist-height gate type. For the Ironman smart speed gate used in premium station deployments, see the smart speed gate turnstile page.
Tripod Turnstile and Full Height — Secondary and Outdoor Station Positions
Tripod turnstiles remain the most cost-effective station gate for secondary entrances, budget retrofit positions, and BRT standard lanes. At $200–$1,200 per lane and 25–40 ppm, they deliver RFID/QR AFC integration at the lowest per-lane capital cost. A separate ADA bypass lane is required alongside every tripod gate bank.

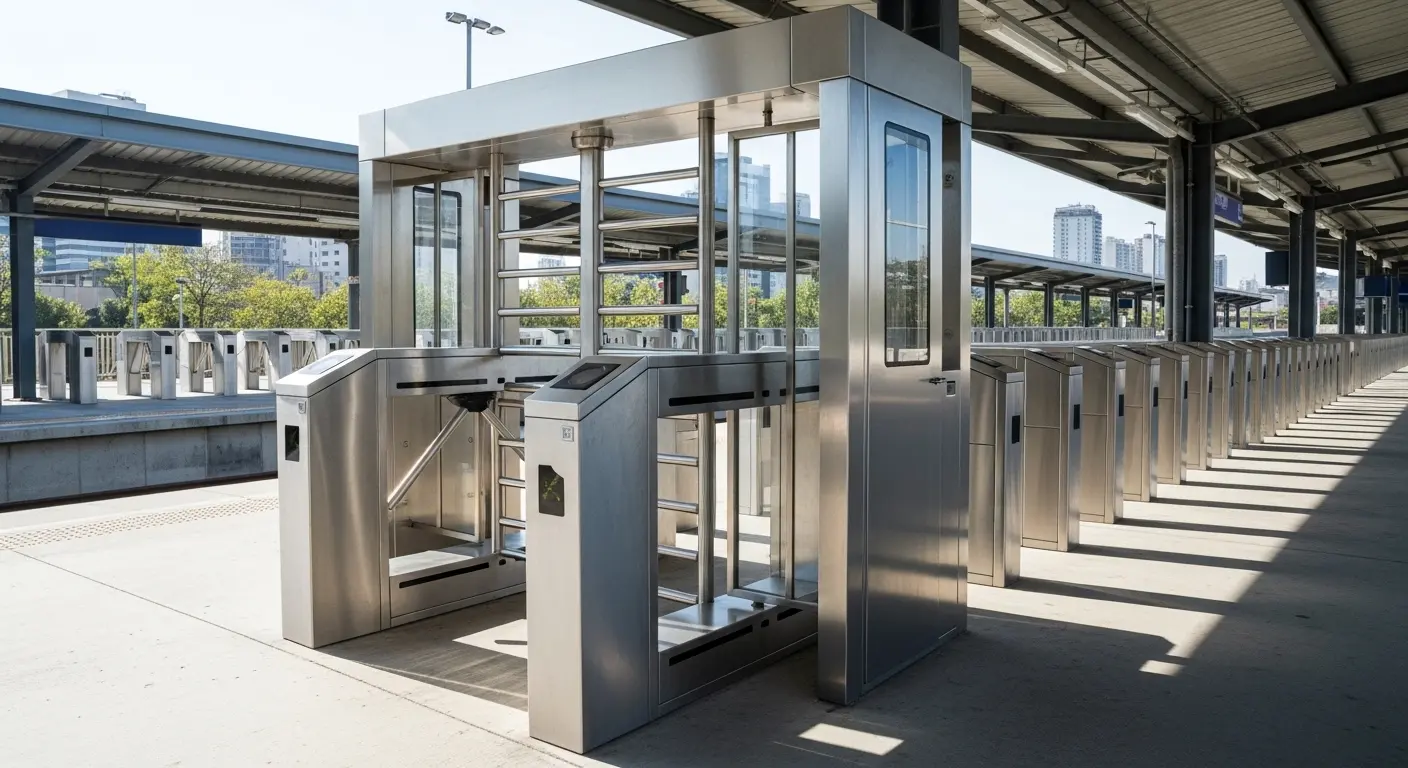

Full height turnstiles suit unmanned outdoor station positions — exposed platform perimeters, unstaffed secondary entrances, and fare barrier perimeters requiring physical access control. Their IP65 outdoor rating and physical cage profile eliminate jump-over at unattended positions. For the Ironman inclined octagonal tripod turnstile used in budget station deployments, see the inclined octagonal tripod turnstile page.
Station Turnstile Gate by Station Type — Which Gate Belongs Where
The station type and peak passenger load determine the gate specification — not just the transit line category. A high-volume railway terminus and a light rail stop in the same system require completely different gate types and lane counts.
| Station Type | Recommended Gate | Lanes | Key Requirement |
|---|---|---|---|
| High-volume railway terminus | Flap barrier | 4–10 + ADA | Max throughput, AFC, anti-tailgating, ADA |
| Standard metro platform | Flap barrier | 2–5 + ADA | Throughput, AFC, ADA |
| BRT terminal | Tripod or flap barrier | 2–4 + ADA | Low cost, RFID/QR AFC, ADA bypass |
| Light rail stop | Tripod or flap barrier | 1–3 + ADA | Compact footprint, RFID/QR AFC, ADA |
| Unmanned outdoor platform | Full height turnstile | 1–2 | IP65, maximum perimeter control |
| Premium city terminal / mezzanine | Smart speed gate or glass sliding gate | 2–6 | Aesthetics, high throughput, AFC |
| Secondary / off-peak entrance | Tripod or inclined arc tripod | 1–2 | Low cost, AFC, ADA bypass |
High-Volume Railway Terminus and Metro Platforms
A high-volume railway terminus requires a minimum gate bank throughput of 200+ passengers per minute during peak dwell events. At 40–60 ppm per flap barrier lane, a bank of 4–5 lanes covers this requirement with one reserve lane for maintenance periods. Based on our railway station deployment analysis, the most consistent throughput failure in station gate installations is sizing for the average hourly entry rate rather than the peak dwell-event burst — where 80–150 passengers converge in a 60–90 second window.
Standard metro platforms with 100–200 ppm capacity need 2–4 flap barrier lanes plus one ADA wide-aisle lane at every gate bank. For the Ironman glass sliding gate used in premium city terminals, see the glass sliding gate turnstile page.
BRT Terminals, Light Rail Stops, and Secondary Entrances
BRT terminals and light rail stops operate at lower peak loads than a mainline railway terminus. A tripod turnstile at 25–40 ppm handles the volume at most BRT and light rail fare positions at the lowest per-lane capital cost. Per ITDP BRT Guide data, retractable wing gates reach 60 ppm, while rotating arm tripods reach 25–40 ppm at the same position. Specify a flap barrier where a BRT station serves a major transfer hub with higher peak loads.
Secondary and off-peak station entrances need one to two tripod lanes plus one ADA bypass lane. The inclined arc tripod configuration suits tight station footprint positions where a standard tripod cabinet width exceeds the available aisle space. For the inclined arc tripod turnstile configuration, see the inclined arc tripod turnstile page.
AFC Integration for Station Turnstile Gates

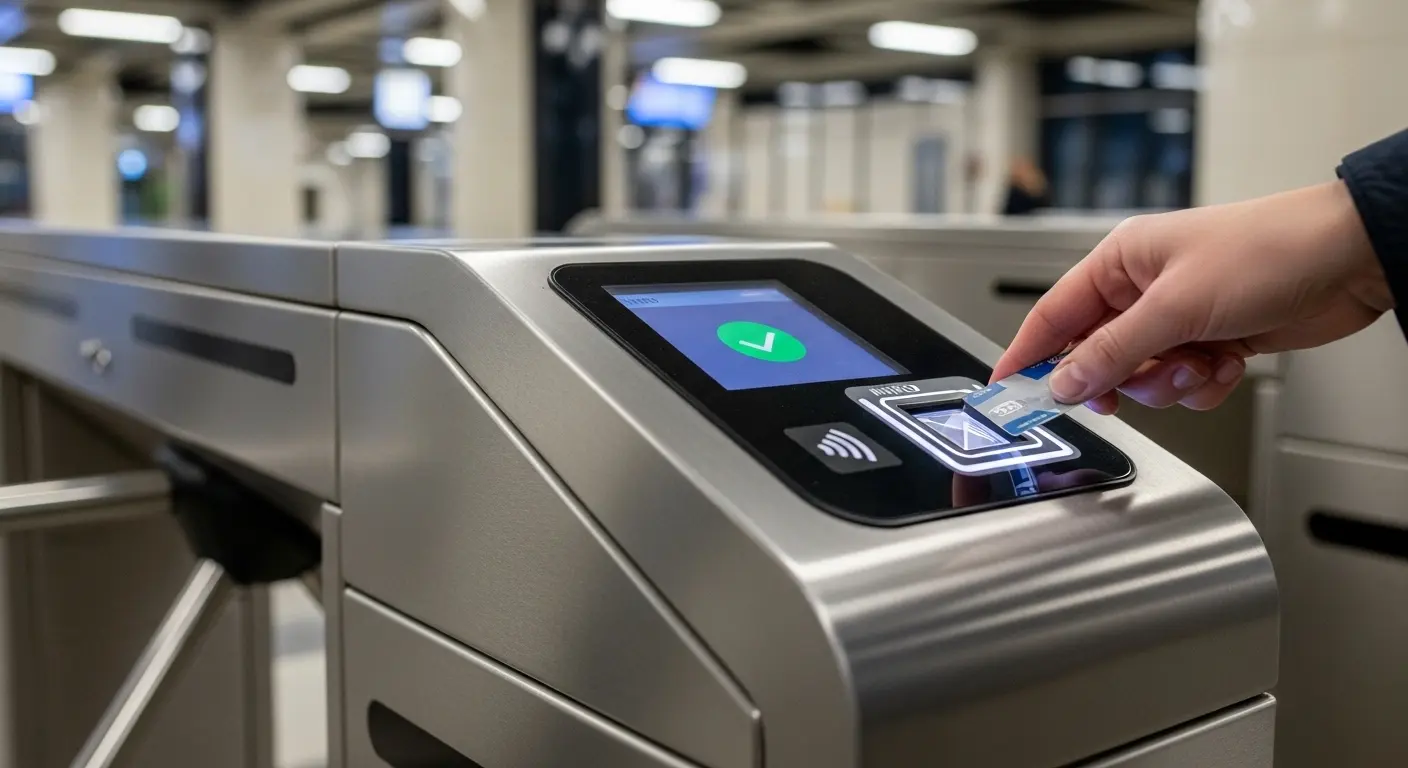

A station turnstile gate must accept the transit authority's ticketing credential from the specification stage — not as a post-installation configuration. Each AFC protocol requires specific reader hardware built into the gate unit at manufacture.
| Ticketing Credential | Protocol | Reader Hardware | Compatible Gate Types |
|---|---|---|---|
| RFID transit card | ISO 14443 / Wiegand | 13.56 MHz reader | Flap barrier, speed gate, tripod, full height |
| QR e-ticket (mobile or printed) | TCP/IP | 2D barcode scanner | Flap barrier, speed gate, tripod |
| EMV contactless bank card | ISO 14443 | EMV contactless reader | Flap barrier, speed gate |
| NFC mobile pay | ISO 18092 / HCE | NFC reader | Flap barrier, speed gate |
| Face recognition | TCP/IP | IP camera module | Flap barrier, speed gate |
| Legacy barcode / magnetic stripe | RS232 | Swipe / scan reader | Tripod (legacy systems only) |
Based on our station deployment experience, the most consistent AFC specification gap is the lack of a dual-reader configuration — a 13.56 MHz RFID reader and a QR scanner in the same gate unit. This covers both transit card users and e-ticket users from one lane without separate channels for each credential type. Confirm both the AFC protocol and the required reader hardware before placing the gate order. For the Ironman anti-tailgating gate with multi-credential configuration, see the anti-tailgating AB turnstile gate page.
Throughput Planning and Outdoor IP Rating for Station Gates
Two specification decisions cause the most rework in station gate projects: under-specifying lane count because of incorrect throughput calculations, and under-specifying the outdoor IP rating for the station's physical environment.
Dwell-Event Throughput Formula
Lanes = Passengers per train ÷ Dwell window (seconds) × 60 ÷ Gate ppm
Example 1 — Railway terminus, 600-passenger train, 90-second dwell, flap barrier at 50 ppm:
600 ÷ 90 × 60 = 400 ppm. 400 ÷ 50 = 8 lanes → 8 flap barrier lanes minimum.
Example 2 — Light rail stop, 150 passengers, 60-second dwell, tripod at 35 ppm:
150 ÷ 60 × 60 = 150 ppm. 150 ÷ 35 = 4.3 lanes → 5 tripod lanes minimum.
Size for the dwell-event peak — not the average hourly entry rate. Average-rate sizing consistently under-specifies lane count for high-volume station deployments.
Outdoor IP Rating for Station Environments
| Station Environment | Minimum IP | Recommended IP | Rationale |
|---|---|---|---|
| Indoor enclosed station | IP42 | IP54 | Dust, occasional splash |
| Semi-covered platform | IP54 | IP54 | Rain splash, wind-driven dust |
| Exposed outdoor platform | IP54 | IP65 | Direct rain, temperature cycling |
| Coastal / humid environment | IP65 | IP65 | Corrosion, salt air, high humidity |
| BRT street-level terminal | IP54 | IP65 | Full outdoor exposure |
In our experience with outdoor station gate deployments, every project where IP54 hardware was specified for a fully exposed platform required an upgrade to IP65 within 12 months — driven by condensation ingress into the gate controller from temperature cycling between day and overnight lows. Specify IP65 for any exposed outdoor station platform at the point of order.
ADA and Fail-Safe Requirements for Station Turnstile Gates
ADA compliance and NFPA 101 fail-safe egress are mandatory requirements for every station turnstile gate deployment — not optional additions.
ADA Accessible Gate Requirements
Under ADA Standards for Accessible Design (U.S. Access Board), every station fare gate bank must include at least one accessible aisle with a minimum 32-inch (812 mm) clear width. The preferred modern transit specification is 48 inches or wider — accommodating wheelchair, stroller, and luggage access simultaneously. The ADA lane must be in the same gate bank — not at a separate station location. For station deployments serving government or civic transit functions, see the government facility access gate page.
NFPA 101 Fail-Safe Egress
Per NFPA 101 Life Safety Code, every station turnstile gate on a designated emergency egress path must retract to the fully open position within 3 seconds of fire alarm activation or mains power loss — and remain open for the full duration of the emergency. The fail-safe trigger must connect directly to the station's fire alarm control panel via a dry-contact input. A software-based command subject to network delay does not satisfy this requirement. Confirm fire panel integration and fail-safe response time at the specification stage — before layout approval.
Getting a Factory-Direct Quote for Your Station Turnstile Gate
Four items are sufficient for a full factory-direct quote within 12 business hours.
- Define your station type and peak load: railway terminus / metro platform / BRT terminal / light rail stop / secondary entrance + train capacity and dwell window in seconds
- Calculate your lane count: apply the dwell-event formula — passengers per train ÷ dwell seconds × 60 ÷ gate ppm = lanes; add one ADA wide-aisle lane per gate bank
- Confirm AFC protocol and IP rating: RFID / QR / EMV / NFC — confirm the transit authority's ticketing protocol; confirm outdoor IP rating for the station's environmental exposure
- Submit your station brief: visit the solutions hub for a factory-direct station turnstile gate quote within 12 business hours, with CE, ISO9001, FCC, and RoHS certification documentation included
Frequently Asked Questions
Q1: What type of turnstile gate is best for a railway station?
For a high-volume railway station, a flap barrier is the best station turnstile gate for standard fare lanes — delivering 40–60 ppm per lane, sensor-based anti-tailgating, and full AFC ticketing integration (RFID, QR, EMV, NFC). A smart speed gate at 50–80 ppm suits premium termini and high-throughput city stations where throughput is the primary operational concern. A tripod turnstile at 25–40 ppm suits secondary entrances and budget retrofit positions at $200–$1,200 per lane. A full height turnstile at 20–30 ppm suits unmanned outdoor platform perimeters where maximum physical access control and IP65 outdoor resilience are required. The correct gate type depends on the station function — not just the transit line category.
Q2: How does a station turnstile gate integrate with AFC ticketing systems?
A station turnstile gate integrates with AFC ticketing systems through specific reader hardware built into the gate unit: a 13.56 MHz ISO 14443 RFID reader for transit cards and EMV bank cards, a 2D barcode scanner for QR e-tickets, an ISO 18092 NFC reader for mobile pay, and a face recognition camera module for biometric verification. Most transit authorities now specify dual-reader configuration — RFID plus QR scanner — so one gate lane covers both transit card tapping and e-ticket scanning without separate lanes. Confirm the transit authority's AFC protocol and required reader hardware at the specification stage. Post-installation reader hardware changes typically add 3–6 weeks to commissioning and increase project cost by 8–15%.
Q3: What throughput does a station turnstile gate need to handle?
Use the dwell-event formula: passengers per train ÷ dwell window (seconds) × 60 ÷ gate ppm = lanes. For a 600-passenger railway train with a 90-second dwell and a flap barrier at 50 ppm, the minimum lane count is 8 lanes. For a 150-passenger light rail stop with a 60-second dwell and a tripod at 35 ppm, the minimum is 5 lanes. Size for the dwell-event peak — not the average hourly entry rate. Per ITDP BRT Guide data, retractable wing gates reach 60 ppm, while rotating arm tripods reach 25–40 ppm at the same position.
Q4: What IP rating does an outdoor station turnstile gate need?
For a semi-covered station platform with intermittent rain splash, IP54 is the minimum acceptable outdoor IP rating for a station turnstile gate enclosure. For a fully exposed outdoor platform — direct rain, temperature cycling, coastal or high-humidity environments — IP65 is the correct specification. In our outdoor station deployment experience, every project where IP54 hardware was specified for a fully exposed platform required an upgrade to IP65 within 12 months — driven by condensation ingress into the gate controller from day-to-night temperature cycling. Specify IP65 for any exposed outdoor station platform at the point of order.
Q5: What are the ADA requirements for a station turnstile gate?
Under ADA Standards for Accessible Design (U.S. Access Board), every station fare gate bank must include at least one accessible aisle with a minimum 32-inch (812 mm) clear width. The preferred transit specification for new construction is 48 inches or wider — accommodating wheelchair, stroller, and luggage access from one lane. The ADA lane must be part of the same gate bank, not at a separate station location. Tripod turnstiles and full height turnstiles require a separate ADA lane alongside the standard gate bank — flap barriers and smart speed gates are available in wide-lane configurations that satisfy the ADA requirement within the same unit.
Q6: What is the fail-safe requirement for a station turnstile gate?
Per NFPA 101 Life Safety Code, every station turnstile gate on a designated emergency egress path must retract to the fully open position within 3 seconds of fire alarm activation or mains power loss, and remain open for the full duration of the emergency event. The fail-safe trigger must connect directly to the station's fire alarm control panel via a dry-contact input — a software command subject to network delay does not satisfy this requirement. A single-action manual override must also be accessible from both sides of the gate at all times. Confirm fire panel integration and fail-safe response time at the specification stage, before layout approval.
Three Decisions That Define Your Station Turnstile Gate Specification
Match gate type to station function and dwell-event peak load — not average hourly rate. Confirm AFC ticketing protocol and dual-reader configuration at the point of order. Specify IP65 for any exposed outdoor station platform from the start. These three decisions prevent the most common rework scenarios in station gate projects and ensure the gate system passes transit authority acceptance testing on the first attempt. Submit your station type, train load, dwell window, AFC protocol, and outdoor IP requirement to the solutions hub for a factory-direct station turnstile gate quote within 12 business hours.
