3 Core Safety Mechanisms of Swing Turnstile Gate Solutions With Access Control System
2026-05-22
The current pedestrian access control systems must achieve a compromise between security and efficiency. Swing turnstile gate solutions with integrated access control systems have been successfully deployed from corporate lobbies to transport nodes, as these types of systems are proven to be effective at blocking unauthorized entry, ensure that access credentials cannot be shared, and can be integrated easily with fire safety systems.

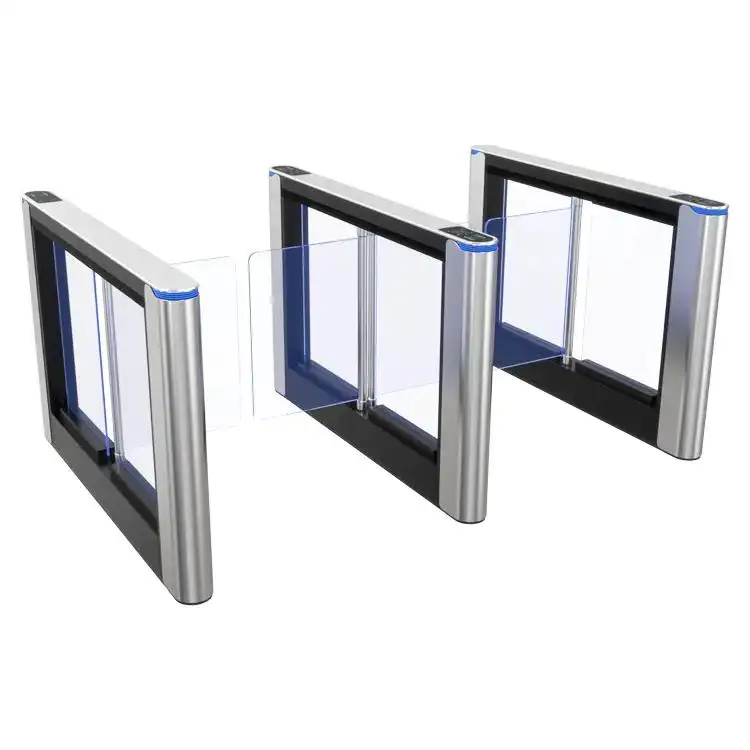

This piece will describe three core safety systems, anti-tailgating, anti-passback and fire alarm emergency releasing, using the IRONMAN Intelligent Bi-Directional Swing Gate IM.XS.05 as an example. You will also understand the functionality and importance of Haworth's Intelligent Bi-Directional Swing Gate and what separates it from other gates.
1. Anti-Tailgating: Unauthorised Follower Detection
Tailgating (or piggybacking) mainly occurs when persons without credentials follow closely behind persons that are authorized to enter and pass through a gate. Simple turnstile gates do not cover these types of scenarios because there is no access control at that level. Advanced swing turnstile gate access control system solutions deploy a multi-pair infrared (IR) sensor array along with a logic function to determine violations in real-time.
How it works:
Along the passage, a configuration of multiple IR sensors are placed at different heights, and as a human passes through that area in front of the sensors, the IR beam is broken. The control board continuously calculates the number of legs, the width of the object, and the time between beam interruptions. If a second set of footprints is detected within the same clearance window, the gate immediately stops closing, sounds an alarm, and locks the swing arm.
Key parameters of the IM.XS.05:
•Standard sensor configuration: 6 pairs of IR beams
•Optional upgrade: Up to 10 pairs for high-security zones
•Detection resolution: Down to 3 cm separation between individuals
•Response time: <0.1 seconds to trigger an alarm
Why this matters for facility managers:
•Reduces “one card, multiple entries” fraud
•Provides audit-ready logs of every tailgating attempt
•Deters social engineering attempts at entry points
Design advantage – IRONMAN Intelligent: The IM.XS.05 allows adjustable beam sensitivity and detection zone length (600-1100 mm passage width). This means the same gate can be tuned for a narrow employee lane (high sensitivity) or a wider wheelchair-accessible lane (comfort with security).
2. Anti-Passback (Anti-Backward Logic): Enforcing Proper Entry/Exit Sequences
Anti-passback (sometimes called “anti-backward logic”) prevents the same credential from being used to enter again without a valid exit record. This is critical for subscription-based facilities (gyms, parking garages) or secure office zones where each person must be tracked.
How it works:
The access control system maintains a real-time status for every credential: “inside” or “outside”. When a user presents their card/facial ID at an entry swing gate, the system checks:
•If status = “outside” → gate opens, changes status to “inside”
•If status = “inside” → gate refuses, logs a potential passback violation
Because the IM.XS.05 is a bi-directional swing gate, it supports both entry and exit lanes with the same hardware. This allows administrators to configure:
•Hard anti-passback – user must exit before re-entering (typical for parking)
•Soft anti-passback – warning is issued but access is still allowed (less strict)
•Timed anti-passback – prevents re-entry within a certain time window
Integration with memory mode:
The IM.XS.05 can process up to 45 persons per minute with memory mode enabled. This means the gate stores the authentication result while the previous person is still passing through—without compromising anti-passback validation.
Real-world benefit:
•Eliminates “ticket sharing” in paid entry scenarios
•Provides accurate occupancy counting for fire code compliance
•Enables automated payroll deductions (e.g., factory workers clocking in/out)
3. Fire Alarm Emergency Unlock: Safety Overrides Access Control
All security hardware must yield to life safety. The third essential mechanism is fire alarm integration. In the event of a fire alarm, emergency power loss, or manual egress request, the swing turnstile must open immediately and remain unlocked until the emergency condition clears.
How it works on the IM.XS.05:
•Dedicated fire alarm input – Dry contact signal from the building's fire alarm control panel (FACP).
•Fail-safe design – When power is cut (or alarm triggers), the solenoid or motor clutch disengages, and the swing arm is mechanically pushed to the open position by a spring or gravity.
•Battery backup option – Keeps the logic board alive to report “gate open due to fire” to the central management system.
Specifications of the IM.XS.05 relevant to fire safety:
•Power-off open – Standard feature (complies with EN 16005 and ADA)
•Fire alarm response time – <1 second from signal to fully open
•Emergency manual release – Tool-free override from the side panel
Why this cannot be an afterthought:
Many low-cost swing gates only support “power-off open” but ignore fire alarm logic. A true fire-integrated solution also:
•Opens when the alarm is active even if main power is still on
•Sends a confirmation signal back to the fire panel
•Disables all audible alarms from the gate during fire mode (to avoid confusion)
IRONMAN Intelligent advantage: The IM.XS.05's control board includes an isolated fire alarm relay input. It also supports remote fire drill testing via the network interface – you can simulate an alarm from the central software without physically triggering building fire systems.
Additional Safety Features That Complement the Core Three
While anti-tailgating, anti-passback, and fire unlock form the security backbone, a well-engineered swing turnstile gate solutions with access control system includes several auxiliary mechanisms:
| Feature | How It Works on IM.XS.05 |
| Real-time anti-pinch | 0.1-second automatic rebound when swing arm meets resistance (child's backpack, elderly cane) |
| Intrusion alarm | Audio-visual alert + remote platform sync if gate is forced open without valid credential |
| Automatic reset | Default 10-second passage timeout; if user hesitates too long, gate recloses and resets for next attempt |
| Multi-language voice indicator | Guides users in English/Spanish/etc., reducing misuse |
| Bi-directional recognition | Gate automatically identifies which direction the user is coming from – no need for separate entry/exit lanes |
Conclusion: Integrated Safety Is Not Optional
A basic swing gate is merely a decorative barrier. True swing turnstile gate solutions with access control system must prevent tailgating, enforce entry/exit discipline, and never block emergency egress. The IRONMAN Intelligent IM.XS.05 delivers these three safety mechanisms via up to 10 IR sensors, fail-safe fire unlock, and servo motor control—without sacrificing throughput. When evaluating turnstiles, ask: sensor count? bidirectional anti-passback? testable fire alarm
Frequently Asked Questions (FAQ)
Q1: How many people can pass through the IM.XS.05 per minute?
Up to 45 persons per minute with memory mode enabled, making it suitable for high-traffic areas like subway stations and office lobbies.
Q2: Is this gate functional when the power is out?
Yes. The IM.XS.05 has what's known as a fail-safe design. When power is lost, the arm swings open to allow emergency exit, which is a requirement of fire codes.
Q3: Is there an option in the system to modify the anti-tailgating functionality?
Yes. The system has the functionality to modify the lane widths by adding anywhere from 6 to 10 IR sensor pairs to adjust the detection logic.
Q4: What is the function of the gate arm if force is applied?
The arm of the gate immediately locks, an audible alarm will sound, a visual alarm will activate, and an intrusion alert will be sent to the Central Management.
Q5: Will the IM.XS.05 work with the existing access control systems?Yes. It can work with RFID, facial recognition, QR, RS485, relays and easily connects to most of the 3rd party access control systems.
