Revolving Turnstile Gate with LED Guidance and Smart Passage Control
2026-06-24
Now a sophisticated access point with smart LED guidance and enhanced passage control, the modern turnstile directs pedestrian flow with greater precision in high-security environments. The evolution of turnstiles will be explored in this article by focusing on the LED movement guidance systems, smart blockage systems for unauthorized entry, and the engineering systems that support reliability.

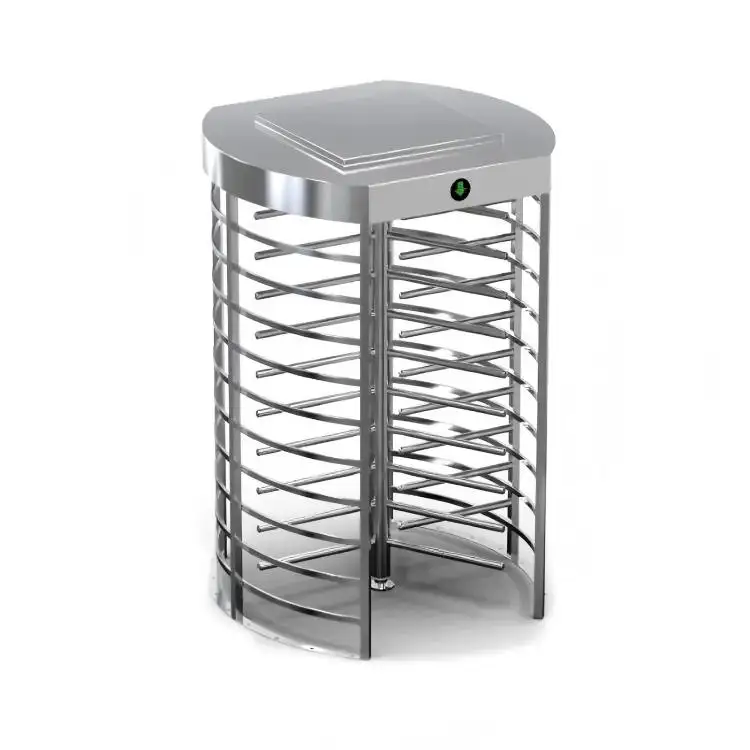

Understanding the Revolving Turnstile Gate: The Full Height Security Solution
All full height revolving turnstile systems are secure by design as they do not allow the passage of more than one person at a time. Some of the models are more sophisticated than others. The most prominent features of the turnstile include:
• No climbing footholds – The design of the arms and the enclosure prevent user handgrips.
• One-person-per-cycle – The mechanism will instantaneously secure the turnstile after rotation.
• Anti-tailgating – Attempts to follow an authorized entry will trigger an alert.
• Anti-Reverse rotation - The turnstile will become locked if a user pushes in the opposite direction.
Because of all these incorporated features, along with smart electronics that direct, verify, and record all entries, the revolving turnstile gate is a complete security package.
With the LED Guidance System: Passage is Simplified
The most noticeable of all the modern features incorporated into most contemporary revolving turnstile gate designs are the LED Guidance Systems. In these systems, the turnstile gates are even able to engage users verbally; by reducing guesswork on the user's part, these systems also increase the turnstile's throughput.
Functionality of LED Guidance
The components of an LED guidance system typically include:
• Illuminated arrows: Provide instant instruction to users, indicating the direction and lane in which to proceed.
• Red and green indicators: Provide instant indication to users whether a lane is open (green) or closed (red).
• Passage status displays: LED screens display real-time status, messages, and instructions (e.g., "Access Granted," "Please Wait," etc).
• Wayfinding assistance: Systems like RGB/LED help people decide how to get where they're going in busy places that have lots of doors and lanes.
Benefits of Visual Direction
Control systems that utilize LED guidance help to assess improvement initiatives in a process. Some of the benefits that may be directly or indirectly attributed to their use include:
• Elimination of hesitation: Users can process the visual instruction instantaneously, allowing new users to traverse without hesitation.
• Decreased queue length: When new users are quickly instructed (e.g., indicators and/or voice prompts), there is a significant reduction in queue length, and user intervention is less frequent.
• Maximized first-pass success: Systems with visual guidance provide instantaneous error correction, which in high volume application environments significantly reduces queue length.
• Improvement of the user experience: Users appreciate the self-instruction capability of the system, and visual instruction allows demands on the security staff to be less restrictive.
| LED Indicator Type | Function | User Benefit |
| Green Arrow | Lane open, proceed | Clear permission signal |
| Red Cross/X | Lane closed, do not enter | Prevents attempts to enter lane |
| Directional Arrow | Indicates flow direction | Move in one-way or bi-directional flow |
| Status Display | Messages, text or icons | Display contextual information |
| RGB Lighting | Wayfinding or zone identification | Helps navigate in complicated designs |
Smart Passage Control: Intelligence Behind the Barrier
Beyond what a user can see, the revolving turnstile gate has smart passage control systems, capable of managing authentication, intrusion detection, and control of the systems according to the flow of people.
Multi-Method Authentication
Contemporary revolving turnstile gates have a plethora of authentication methods, which give the flexibility to select the methods that align with the required level of security.
• Cards and Wristbands: For season ticket holders and staff in hospitality and staff zones.
• RFID Technology: Used on printed/mobile tickets which are scannable in direct sunlight.
• Facial Recognition Technology: For staff gates, VIP entry, and high-security zones.
• Fingerprint and other biometric scanning: Used for highly secure zones and for the highest level of identity verification.
• Mobile credentials: Used for modern, contactless access.
The authentication can be set in one-direction for card entry and facial recognition in the opposite direction.
Intelligent Passage Detection
Smart passage control ensures that each credential matches one person using sophisticated technologies:
• 8 pairs of infrared detectors: This system establishes an invisible grid that validates entry and activates alarms for unauthorized breaches.
• Anti-tailgating: The system locks the lane if persons passing through are more than one.
• Hesitation and Obstruction detection: The system instantly reverses the barrier to obstructions and protects persons if an individual is hesitating.
• Real-time notifications: The system instantaneously notifies breaches to the administrator for immediate action.
Adaptive Flow Management
A revolving turnstile gate can be modified to accommodate the smart passage control shift occurring to the hourly changes of traffic patterns.
• Flow Direction: The system is updated to change the direction of the gates to one-way, bi-directional, or free passage by a policy update.
• Passing Through Timeout: The system is reset after a configurable time period by the user who authenticates, but does not pass through immediately. The system continues to reset to the passage through limits.
• Automatic opening of lanes: The system can support evacuation pathways during a fire alarm by linking the fire alarm to the system.
• Peak-hour system adjustments: Real-time demand-based system adjustments during peak hours are aimed at maximizing throughput.
Technical Specifications and Engineering Excellence
The engineering quality of a turnstile gate integrating LED signposts and smart traffic tools is crucial to its performance. Some of the critical specifications are:
| Parameter | Specification | Significance |
| Dimensions | 1500 × 1460 × 2300 mm | For full-height security |
| Arm Length | 500 mm | A perfect arc for passage rotation |
| Passage Width | 550-600 mm | Most comfortable while eliminating the possibility of two people entering side by side |
| Passing Speed | ≤ 35 people/min | Optimum for high traffic |
| Material | 304 stainless steel | Strong and resistant to corrosion |
| Temperature Range | -30°C to +70°C | Function in most of the world's climates |
| Power Supply | AC110-220V ±10% 50HZ | Considerate of most of the world's power supply |
Material and Durability
The design of the revolving turnstile gate covers most demanding use cases.
• Construction of 304 stainless steel: 1.2mm Top Box and guardrails, 2.0mm Rotating Arms, corrosion, deformation, and impact resistant.
• ISO 9227 salt spray certification: 2,000 hours of rust protection, even in the most high humidity and coastal areas.
• Sealed internal mechanisms: Keeps dust and dry lubricants in and extends the lifespan of the turnstile.
• IP Dust and Water: Protects the turnstile from the effects of dust and water, allowing it to operate continuously year-round.
Integration Capabilities
The revolving turnstile integrates easily as a node in other security systems:
• Communication protocols: RS485, TCP/IP and relay are all supported.
• Platform integration: Flexible integration with third party Access Control, Ticketing and Time Attending applications.
• Remote monitoring: Continuous entry and exit logs, adjustments, and reports not needing an audit.
• Wide input voltage: 100-240V.

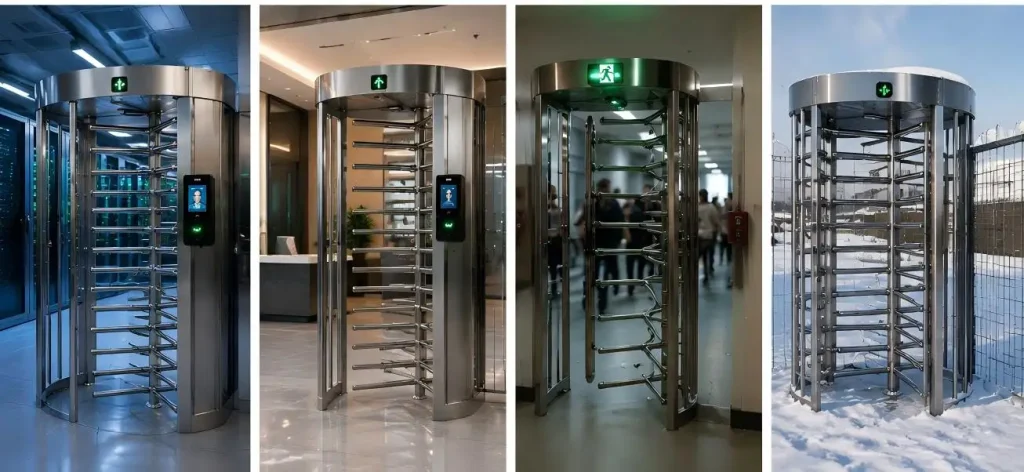

Turnstile System Use Cases
Below are examples of turnstile systems in different sectors:
• Transportation: Fast and easily accessible with a maximum capacity of 35 people per minute.
• Stadium: Flexible LED with multi-format ticketing (QR, RFID, etc.).
• Industry: Turnstile systems constructed with 304 stainless steel and are ready to go 24 / 7.
• Prison: Full barrier systems with biometric.
• Data Centers: Turnstiles fully integrate access control with the real-time logging of entry and other security components.
Safety and Emergency Feature Integration
• Emergency Unlock: The turnstile unlocks and opens for passage in the event of an evacuation.
• Fire Alarm Fail-Safe: The turnstile unlocks and opens for entry after the alarm condition.
• Anti-Pinch Technology: In order to minimize the possibility of an injury occurring, the sensors will retract the barrier, or will stop the barrier.
• System Tampering and Intrusion Alerts: Unauthorized attempts trigger a system alert to administrators.
Final Thoughts
The system combines complete security, intelligent control, full barrier system, and an LED guided system. This system provides the optimum security and safety solution while maximizing throughput in industrial hubs, data centers, and stadiums.
FAQs
Q: What is a revolving turnstile gate?
A: Full height revolving turnstile gate is a type of turnstile gate which uses a combination of mechanical rotation and electronic intelligence to control the access of pedestrians.
Q: What is the function of LED guidance in passage?
A: It utilizes arrows and color indicators to inform users and identify passage lane status, which minimizes uncertainty and mistakes.
Q: What are supported authentication methods?
A: It supports RFID cards, QR codes, facial recognition, fingerprints, and mobile credentials.
Q: Can it control tailgating?
A: Yes, it can. It is provided with infrared sensors which detect multiple persons and therefore send immediate notifications.
Q: Is it an outdoor suitable product?
A: Yes, it is an outdoor suitable product. It is built with 304 stainless steel and in the corrosion-resistant coat which is designed to withstand 2,000 hrs of salt spray test.
