Turnstile Gate Solutions With RFID For Smarter Site Security

Turnstile Gate Solutions With RFID are increasingly chosen because RFID is not just a “card reader.” It is a fast, trackable identity layer that helps sites turn daily entry into a controlled, auditable workflow. From IRONMAN Intelligent’s perspective, a good RFID-based lane should feel effortless for authorized users, while giving security teams clearer rules and fewer exceptions.

RFID Is More Than a Credential: It Is a Site Identity Layer

RFID works by exchanging short-range radio signals between a credential (card, tag, wristband) and a reader. The practical value is speed and consistency. Users do not need to align a barcode, type a PIN, or slow down for a camera to focus. The system reads the credential quickly and triggers a decision.

For site managers, RFID improves three daily realities:

✓ Faster authorization: reduces friction at peak times because the read action is simple.

✓ Repeatable identity checks: one credential maps to one identity record, so access rules stay consistent.

✓ Traceable movement records: each valid pass can be logged for auditing, visitor review, and incident checks.

This is why Turnstile Gate Solutions With RFID fit offices, libraries, transportation hubs, and recreational venues. The lane becomes a “behavior boundary,” while RFID becomes the “identity key” that can be managed centrally.

Why RFID Pairs Naturally With a Turnstile Lane

If RFID is the identity check, the turnstile lane is the enforcement mechanism. Many sites already have RFID readers on doors, but doors do not control tailgating well during busy hours. A swing gate lane does.

In Turnstile Gate Solutions With RFID, the gate reacts to a valid RFID event in real time, then uses sensors to confirm proper passage. This pairing is important because it reduces the gap between “permission granted” and “movement controlled.”

In practical terms, RFID gives you policy control, while the lane gives you physical control. Together, they support smarter site security without forcing staff to act as “human gatekeepers.”

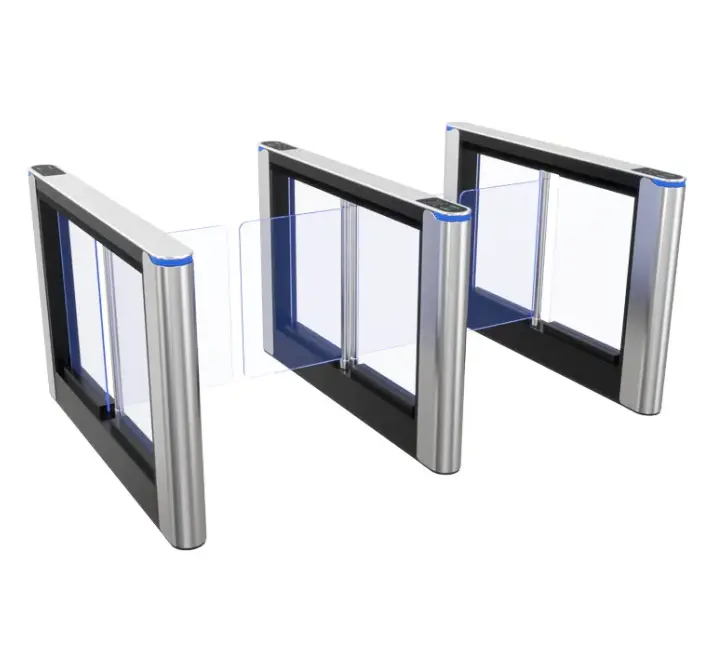

IM.XS.05 Bi Directional Swing Gate: Built to Let RFID Work at Full Speed

IRONMAN Intelligent’s IM.XS.05 is designed for high-traffic lanes where RFID must remain smooth, even during peaks. It uses a high-speed service motor and a machined aluminum chassis for stable performance and an elegant appearance.

A few key specifications matter when you build RFID lanes at scale:

✓ Passing speed ≤45 persons/minute: supports fast, continuous RFID entry during rush periods.

✓ Standard 6 pairs of infrared sensing (optional up to 10 pairs): strengthens passage verification, especially when flow is dense.

✓ Passage width 600–1100 mm (customizable): supports different site needs and flexible lane planning.

Dimensions are 1500 × 120 × 980 mm, making it easier for planners to design lanes with predictable footprint. Materials include SGCC + aluminum alloy, supporting a clean modern look while remaining durable for frequent use.

RFID Strengths: Speed, No-Contact Habits, and Easy User Training

A practical advantage of RFID is that it matches human behavior. People naturally want entry to be quick and simple. RFID supports short “tap-and-go” habits that are easy to train and easy to standardize across teams.

This matters for multi-site operations because training cost is real. When users follow the same action every time, security outcomes become more predictable.

✓ Clear User Behavior: the “authorized pass” routine is easy to follow and enforce.

✓ Reliable Compliance: consistent actions across teams reduce accidental rule breaks.

✓ Positive First Impression: voice and LED guidance supports calm, orderly visitor movement.

IM.XS.05 supports multilingual voice indicators and LED direction indicators, which helps reduce confusion in mixed-user environments such as transit buildings, libraries, and public venues.

RFID Security Value Depends on Gate Logic: Stop Tailgating, Not Just Bad Cards

RFID controls who is allowed. The gate controls how people actually pass. This is where smarter security is created. IRONMAN Intelligent focuses on security logic that protects throughput, not just the door.

✓ Anti-tailgating and dwelling detection: reduces “follow-behind” behaviors that often defeat RFID doors.

✓ Anti-backward logic: helps prevent reverse passing and rule-breaking exit patterns.

✓ Intrusion alarms (sound + light): creates immediate onsite feedback and supports remote platform sync.

Safety also protects security. If a gate feels unsafe, operators disable features, and exceptions increase. IM.XS.05 supports real-time anti-pinch behavior:

✓ 0.1s automatic rebound upon obstruction: supports safer daily movement while keeping lanes active.

In addition, RFID lanes should stay stable in real environments. Anti-interference design helps prevent abnormal behavior caused by external electromagnetic factors, supporting reliable operation.

Deployment and Integration: Where RFID Lanes Become a Management Tool

The best Turnstile Gate Solutions With RFID do not create a new isolated system. They plug into your existing access control platform and become a management tool: you can monitor lanes, check events, and adjust modes without heavy onsite workload.

IM.XS.05 supports:

✓ Integration with existing access control systems: practical for upgrades rather than full replacements.

✓ External ports for biometric devices: supports multi-method authentication when needed.

✓ Flexible Modes: set one-way, two-way, or free passage at the control panel.

✓ Built For Emergencies: fire alarm unlock + power-off open for reliable egress.

For projects spanning different climates and installation conditions, durability helps keep maintenance predictable:

✓ ISO 9227 Salt Spray Compliance (2,000 Hours Rust-Free): supports corrosion resistance and long-term structural integrity.

✓ -35°C to +75°C operating range: supports indoor/outdoor compatibility in many regions.

✓ 110–240V wide-range input: supports global grid deployment.

✓ Certifications: CE, FCC, and ISO support compliance readiness, smoother audits, and easier cross-region deployment.

CTA (Call-to-Action)

Planning Turnstile Gate Solutions With RFID in 2026? Share your lane count, required passage width (600–1100 mm), peak traffic expectation (persons/minute), and credential preference (RFID-only or RFID + biometrics) with IRONMAN Intelligent. We will propose a practical IM.XS.05 lane plan, recommend sensor and anti-tailgating settings, and provide a manufacturing-ready quotation path for stable, repeatable deployment.
